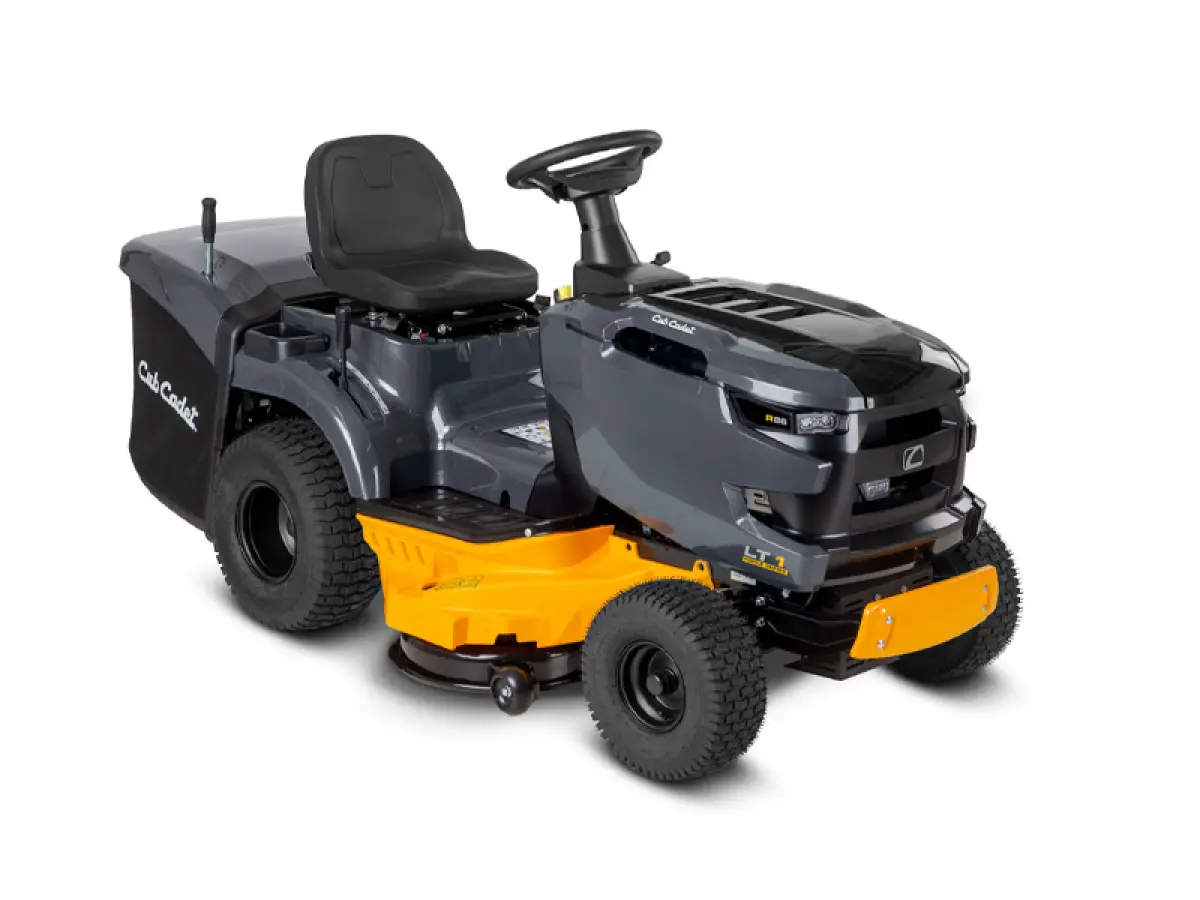

Cub cadet Petrol Lawn Tractor LT1 R86

• The Cub Cadet LT1 R86 lawn tractor combines powerful engine performance with comfortable operation and is an efficient solution for medium to large lawns
• With an 86 cm cutting width and a 245-liter collection bag, the lawn tractor works quickly and ensures an even cut, even on uneven terrain
• The proven Cub Cadet OHV single-cylinder engine (439 cc) delivers 7.4 kW at 2,700 rpm and guarantees consistent performance throughout the season
• The 5-speed transmission is simple, reliable, and adaptable to different conditions. Speed control is pedal-operated, with a manual lever for preselection
• For maximum flexibility in daily use, the LT1 R86 offers rear discharge and the ability to mow in reverse. The cutting deck is engaged electromagnetically with the simple press of a button
• The 7-position cutting height adjustment (30–90 mm) allows quick adaptation to lawn growth and maintenance goals
• Comfort is also a priority: ergonomic controls, a high-back seat, and integrated LED headlights ensure relaxed use, even late into the evening.

TECHNICAL DATA

ENGINE

Engine: Cub Cadet OHV
Displacement: 439 cm³
Rated power: 7.4 KW
Engine type: Single-cylinder
Fuel tank capacity: 7.6 lt

TRANSMISSION

Transmission: Mechanical
Speed (max): 5 (forward/reverse)
Control: Pedal with manual preselection lever

CUTTING SYSTEM

Working area: 3000 m²
Cutting width: 86 cm
Cutting height: 30–90 mm
Cutting options: 2-in-1
Number of blades: 2
Blade engagement: Electromagnetic
Deck height positions: 7 positions
Deflector: Standard
Wash nozzle: Standard
Mulching kit: Optional (19A13003603)

DISCHARGE SYSTEM

Collection basket: 245 l
Deflector: Standard

FRAME

Front axle: Steel
Steering radius: 46 cm
Wheel bearings: Sleeve bearings

BATTERY

Battery: 12 V
Lights: LED

COMFORT

Seat: High-back Comfort
Seat adjustment: Lever
Reverse cutting (RevTEK): Standard
Charger: Optional (5033-BC-0001)

DIMENSIONS

Dimensions (L / W / H): 235 / 96 / 111 cm
Net weight: 189 Kg
