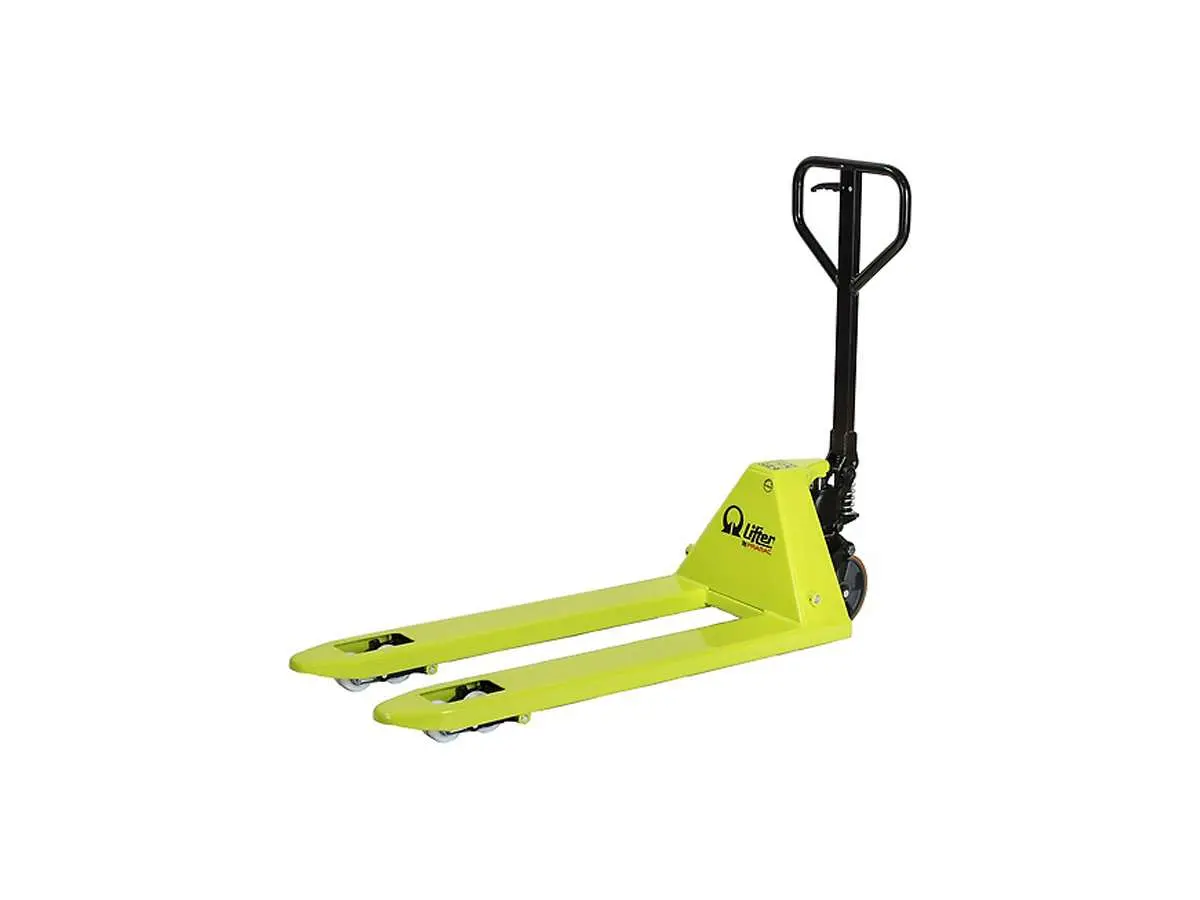

Pramac GS25S4 Pallet Truck - Pramac

• The GS pump has been designed with extreme attention to detail to deliver
  superior features and performance
• Monolithic design: the durable and reliable cast iron block protects all components from accidental damage
• The pump housing is machined with CNC equipment to achieve extremely precise tolerances
• Chromed piston and oil seal: to prevent rust and avoid oil leaks during use
• Maximum pressure valve: protects the machine from overloads
• ON/OFF release valve
• 45mm Nylon - Poly wheels
• Nylon rollers
• 4-bend tiller with all controls on a single lever and wide side grips
• This ensures high comfort during handling operations, reducing fatigue while pushing loads
• Easy and quick tiller installation
• Tiller/pump connection via two fully welded joints that guarantee superior robustness in the most demanding applications
• Manual control brake
• The pallet truck brake, available with rubber steering wheels, is adjustable via the tiller lever to ensure safe use on slopes and ramps
• The locking function allows the pallet truck to be parked on inclines without rolling away

TECHNICAL DATA

Type of Propulsion:

Manual
Steering system: Accompaniment
Capacity: 2500 Kg
Lifting height: h3 115 mm
Total length: 1550 mm
Total width: b1 525 mm
Fork dimensions: Width e mm: 150
Fork length: l 1150 mm
Fork width: b5 525 mm
Pallet storage aisle: 800x1200 longitudinally Shaft 2048 mm
Turning radius: Wa 1367 mm
