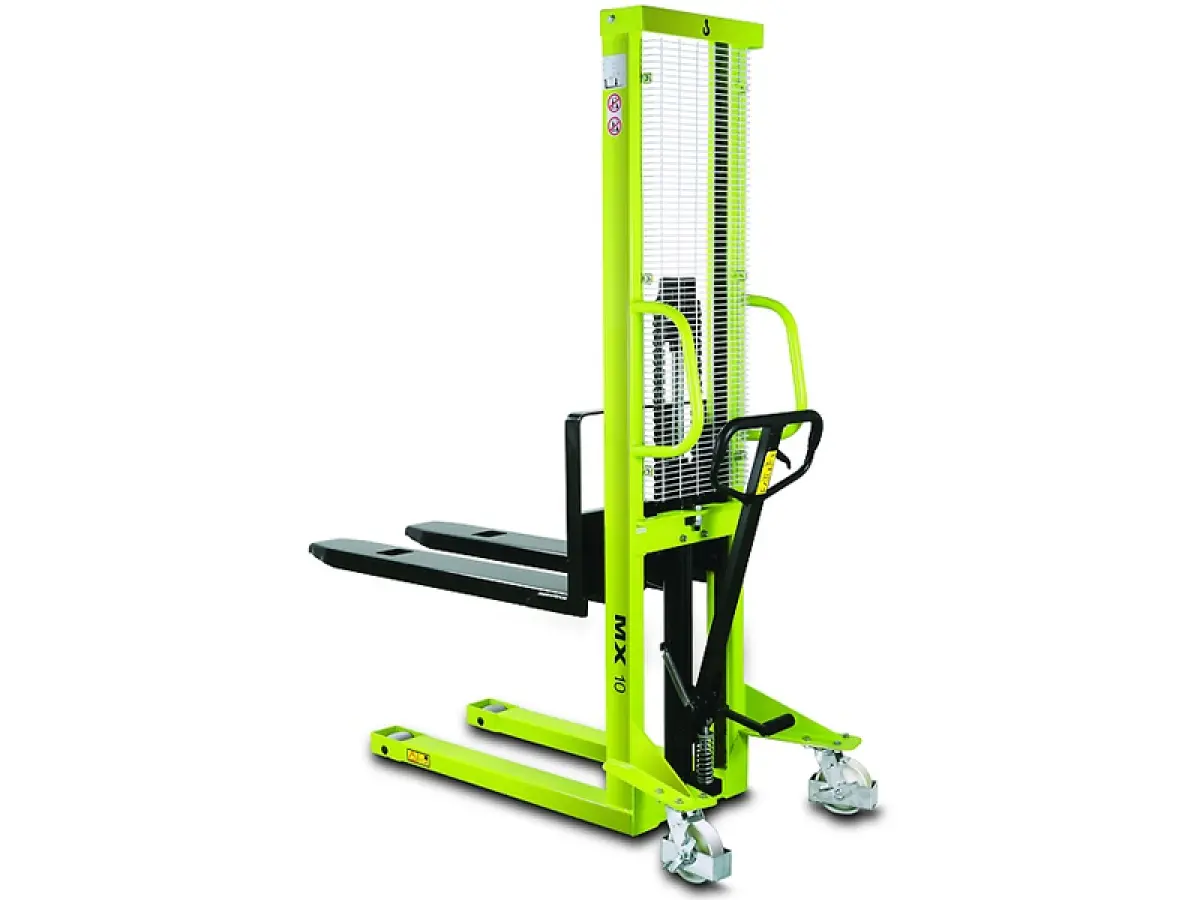

- The MX series is a sturdy and durable trolley, perfect for lifting and transporting loads. The reinforced forks, steel pulley, and forks precisely guided by rollers make it an excellent compromise between price and performance. The machine is also equipped with a lifting pedal, which significantly reduces the operator's effort.
TECHNICAL DATA
Drive and lifting: Manual
Lifting height: 1600 mm
Capacity: 1000 kg
Weight: 210 kg
Weights
Rear axle load (full load) Kg 901
Front axle load (full load) Kg 309
Front axle load (no load) Kg 129
Rear axle load (no load) Kg 81
Frame/Wheels
Stabilizer wheels tire material NYLON
Rear tire material NYLON
Rear wheel size - Diameter mm 80
Rear wheel size - Width mm 70
Side wheel size - Diameter mm 150
Rear wheel size - Q.
tà (x=drive unit) no. 2
Front track b10 mm 600
Rear track b11 mm 380
Dimensions
Height, mast lowered h1 mm 1970
Free lift h2 mm 1510
Lifting height h3 mm 1510
Height, mast extended h4 mm 1970
Tiller height in driving position max h14 mm 1090
Fork height lowered h13 mm 90
Total length l1 mm 1690
Drive unit length l2 mm 540
Total width b1 mm 740
Fork dimensions - Thickness s mm 60
Fork dimensions - Width e mm 170
Fork length l mm 1150
Fork front width b3 mm 550
Fork width b5 mm 550
Clearance at mid-pitch m2 mm 30
Storage aisle for pallet 800x1200
Longitudinally
Ast mm 2166
Turning radius Wa mm 1400
Performance
5. 10 Service brake NOT
