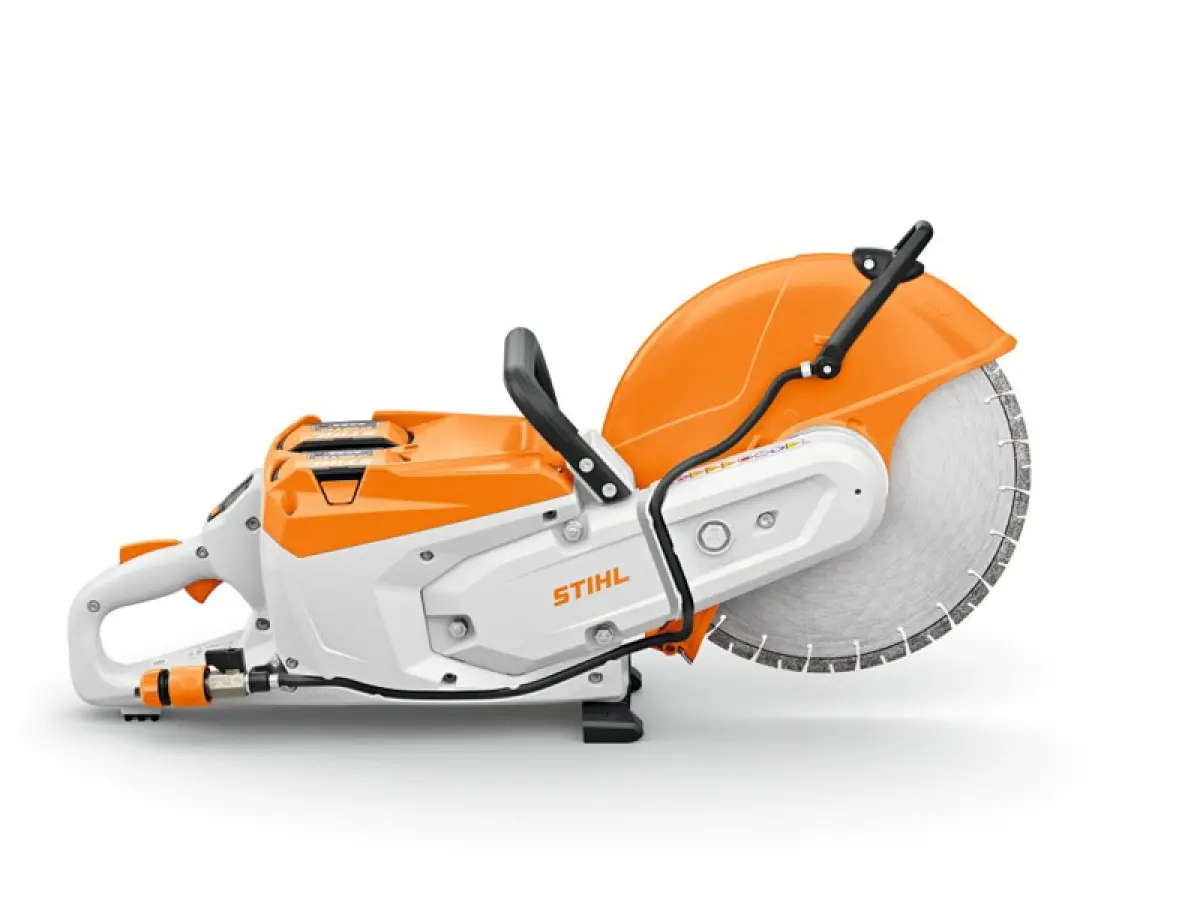

Stihl Battery-powered Cut-off Saw TSA 500 B

Compatible with AP series batteries

OPERATES WITH TWO BATTERIES

• The powerful STIHL TSA 500 battery-powered cut-off machine, part of the STIHL AP system, runs on 2 STIHL AP 500 S batteries. It is extremely versatile and ideal for professionals working in gardening, construction, roadworks, emergency services, and firefighting
• You can use it to reliably cut various materials such as steel, concrete, bricks, or natural stone
• Thanks to its emission-free operation, it can also be used indoors
• The high-performance EC motor operates with minimal wear, is quiet, and stands out for its smoothness and low vibrations. Electronic control ensures the TSA 500 always performs optimally throughout the battery life
• To protect the motor from dust and metal particles and ensure long durability, the cut-off machine is equipped with the STIHL magnetic filter, which is easy to clean, especially if you often work with steel
• The TSA 500 is easy to handle: thanks to the ergonomically optimized handle with digital control unit, the ADVANCE PLUS module with integrated STIHL Smart Connector for management via STIHL Connected, and the LED display, you have everything comfortably under control
• The ergonomic handles and rigid structure of the TSA 500 allow you to guide the cut precisely, both when approaching and during work
• It is designed for 350 mm cutting discs and reaches a maximum cutting depth of 125 mm. Among the accessories, you can find various types of diamond discs for different applications
• Another advantage of the TSA 500 is the stop brake with recovery function: the disc stops within seconds, allowing you to resume work immediately.

Sold without battery and charger

TECHNICAL DATA

CUT-OFF MACHINE

Power consumption: 5 kW
Rated voltage: 72 V
Weight: 9.1 kg
Sound pressure level: 106 dB(A)
Sound power level: 117 dB(A)
Vibration value left: 2.4 m/s²
Vibration value right: 2 m/s²
Total length: 82.1 cm
Cutting disc diameter: 350 mm
Max cutting depth: 125 mm
IP protection rating: IPX4

BATTERY

Recommended battery: AP 500 S
Battery life with AP 200 S: 16 min
Battery life with AP 300 S: 30 min
Battery life with AP 500 S: 30 min

EQUIPMENT

Ergonomic handle
PRECISE TOOL GUIDANCE. The ergonomic handle allows you to firmly hold the tool and make precise cuts even on the hardest rocks. The curved handle offers a better grip position and maximum comfort during work

Magnesium guard
LIGHTWEIGHT AND STABLE. The cutting disc guard ensures protection from flying debris and, as much as possible, from the cooling water of the disc. Made of die-cast magnesium, it is particularly lightweight and robust

Water connection
COOLING AND DUST REMOVAL. When working with the tool, a constant flow of water is provided to clean the cutting disc. This serves to cool the cutting disc and prevent dust formation. Thanks to the water connection directly on the tool, this cleaning process is simple and continuous

Automatic belt tensioning
A slight correction of the belt tension to a constant level increases the lifespan of the belt and bearings

EC motor
HIGH PERFORMANCE AND LOW MAINTENANCE. Thanks to its compact design, low weight, and high performance, the EC motor enables energy-efficient work. Moreover, this motor is distinguished by its long service life
