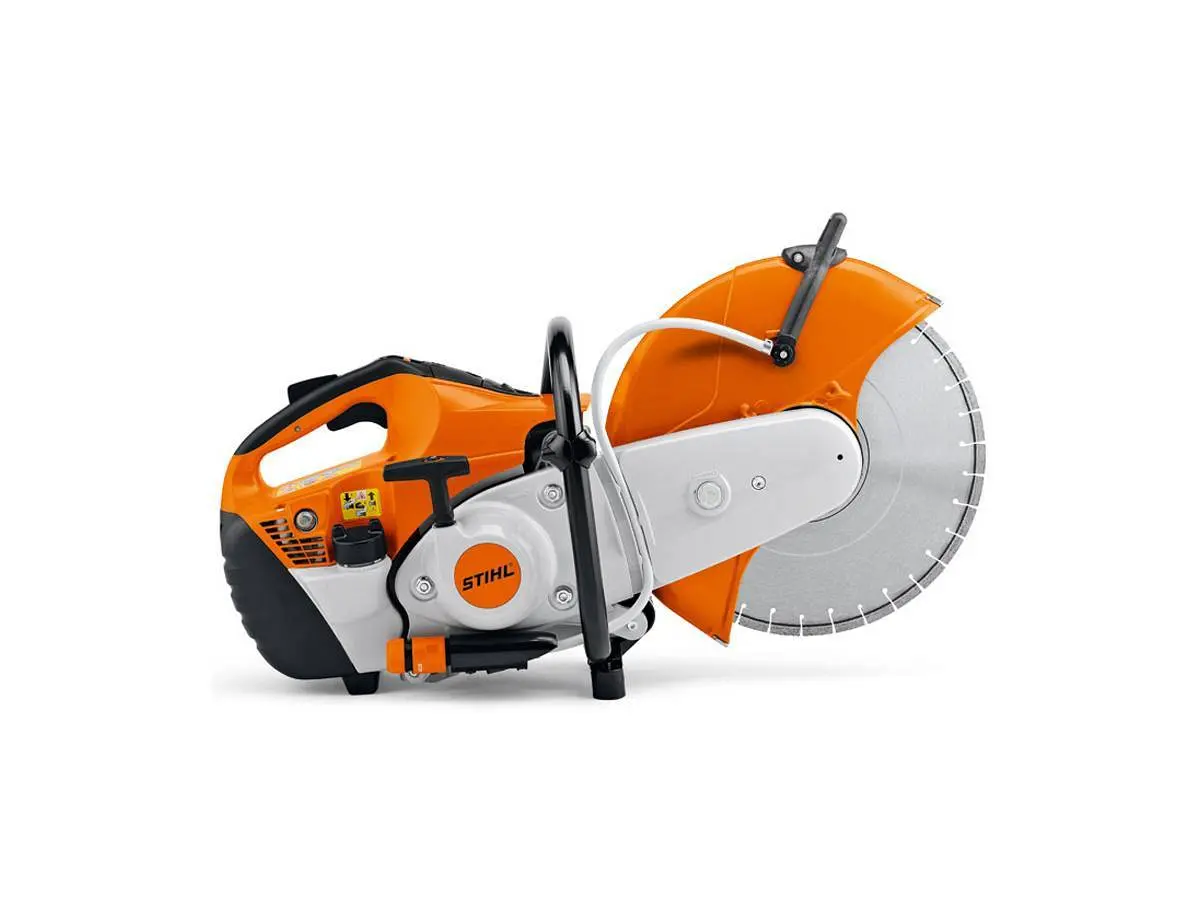

- Universal cut-off machine with STIHL Injection
- For 350 mm cutting discs
- Electronic injection ensures perfect operation
- Thanks to the unique starting position, starting the cut-off machine is particularly easy
- Electronic water flow control for easy dosing of the quantity
- The STIHL anti-vibration system, designed to reduce vibration levels, optimizes the cutting precision of the cut-off machine
- STIHL ElastoStart and the decompression valve significantly facilitate starting
- High torque with economical 2-MIX engine
- Displacement: 72.2 cm³
- Power: 5.3 hp
- Weight: 10.2 kg
TECHNICAL DATA
Displacement:
72.2 cm³
Power: 3.9 kW
Power: 5.3 hp
Cutting disc diameter: 350 mm
Sound pressure level: 98 dB(A)
Sound power level: 112 dB(A)
Vibration value right: 2 m/s²
Vibration value left: 2.4 m/s²
Maximum cutting depth: 125 mm
Speed at Pmax: 9300
Tank capacity: 0.72 liters
Weight: 10.2 kg
EQUIPMENT
QuickStop disc brake
Designed to reduce the risk of kickback injuries when the guard is fully open, exposing the upper part of the disc. The disc rotation is stopped within fractions of a second, i.e., when the kickback energy is sufficiently high
Electronic water supply control
The water flow is activated and deactivated automatically. The use and dosing of water quantities are conveniently controlled with a series of buttons.
Long-lasting air filter
The long-lasting air filter with cyclone pre-filter lasts up to one year (depending on operating conditions) and does not require periodic cleaning
Ergonomic handle
The ergonomic handle provides exceptional cutting comfort in all working positions
2-MIX engine
Impressive thanks to reduced harmful exhaust emissions and outstanding performance
Anti-vibration system
Special spring-mounted damping elements reduce the transmission of vibrations from the engine to the operator’s hands and arms. This makes hand-guided cutting less tiring
STIHL ElastoStart
Thanks to the exclusive STIHL ElastoStart starter handle, combined with the manual fuel pump and decompression valve, kickbacks during starting are significantly reduced
Manual fuel pump (Purger)
By pressing the manual fuel pump several times before starting, the number of pull attempts can be reduced by approximately 40%. This ensures fuel is available more quickly at startup
Water connection
Through a standard water connection with drip system, water reaches the cutting disc, thereby suppressing the dust generated by cutting. It is mounted on the equipment so as not to interfere during work
Magnesium guard
Magnesium die-cast cutting disc guard. This results in a significant weight reduction. Guard adjustment and water supply feature a new ergonomic design
