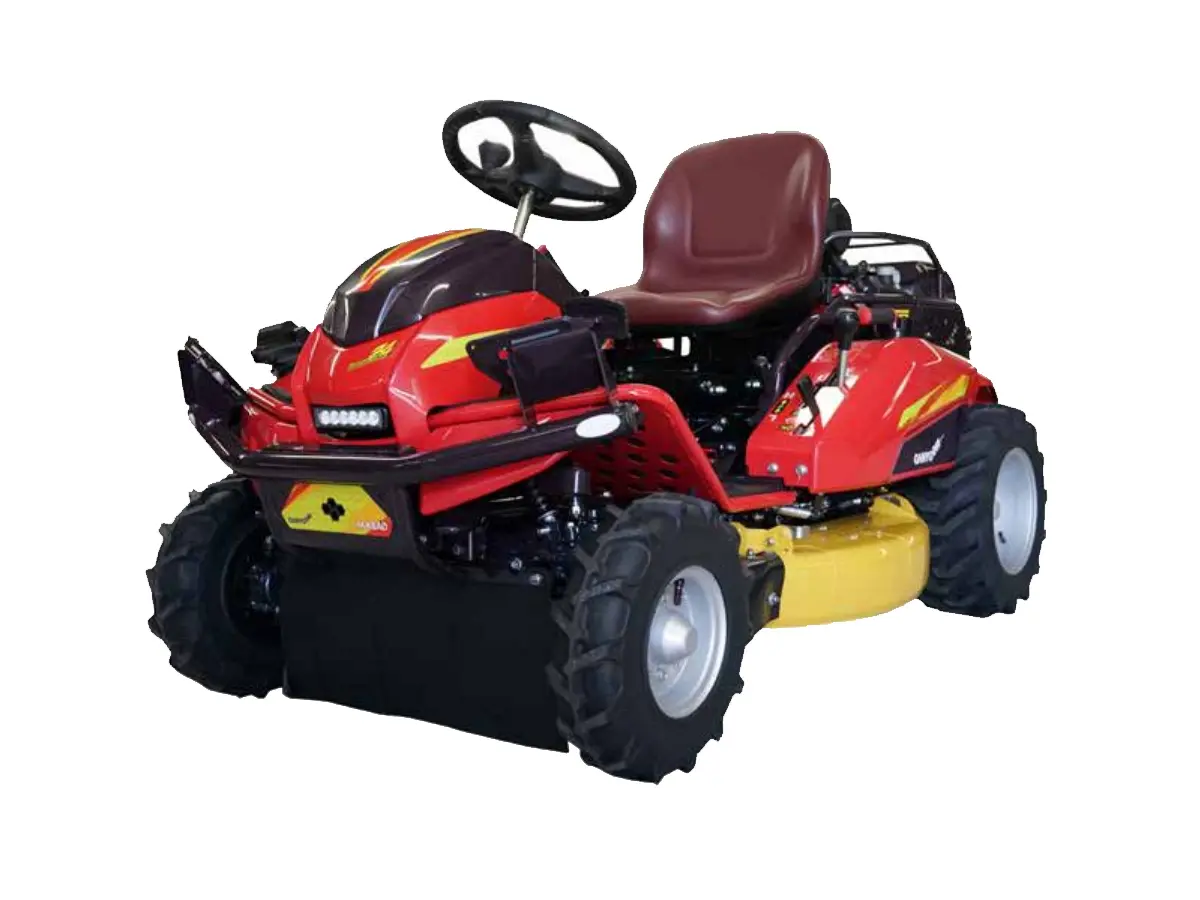

Canycom CMX2408H Rider Mower

• Anti-tip
• 4x4 traction with differential lock
• Maximum working slope 25° / 47%
• Accelerator with "ECO" mode
• Cardan transmission for blades and traction
• Hour counter with maintenance reminder
• Enlarged rear wheels

TECHNICAL DATA

Weight: 380 kg
Engine: Honda GX690 (24HP)
Transmission: Hydro-mechanical with auxiliary tank
Traction: 2 and 4 wheel drive with differential lock
Cutting: Oscillating blades with cardan transmission
Cutting width: 975 mm
Cutting height: 0 - 150 mm (21 positions)
Brakes: Internal expansion
Steering radius: 1.9 m
Max cutting capacity: 7,770 m2 /h
Overall length: 1,920 mm
Overall width: 1,020 mm
Overall height: 1,040 mm
Displacement: 688 cm3
Starting system: Electric
Speed: 0-14.2 km/h
