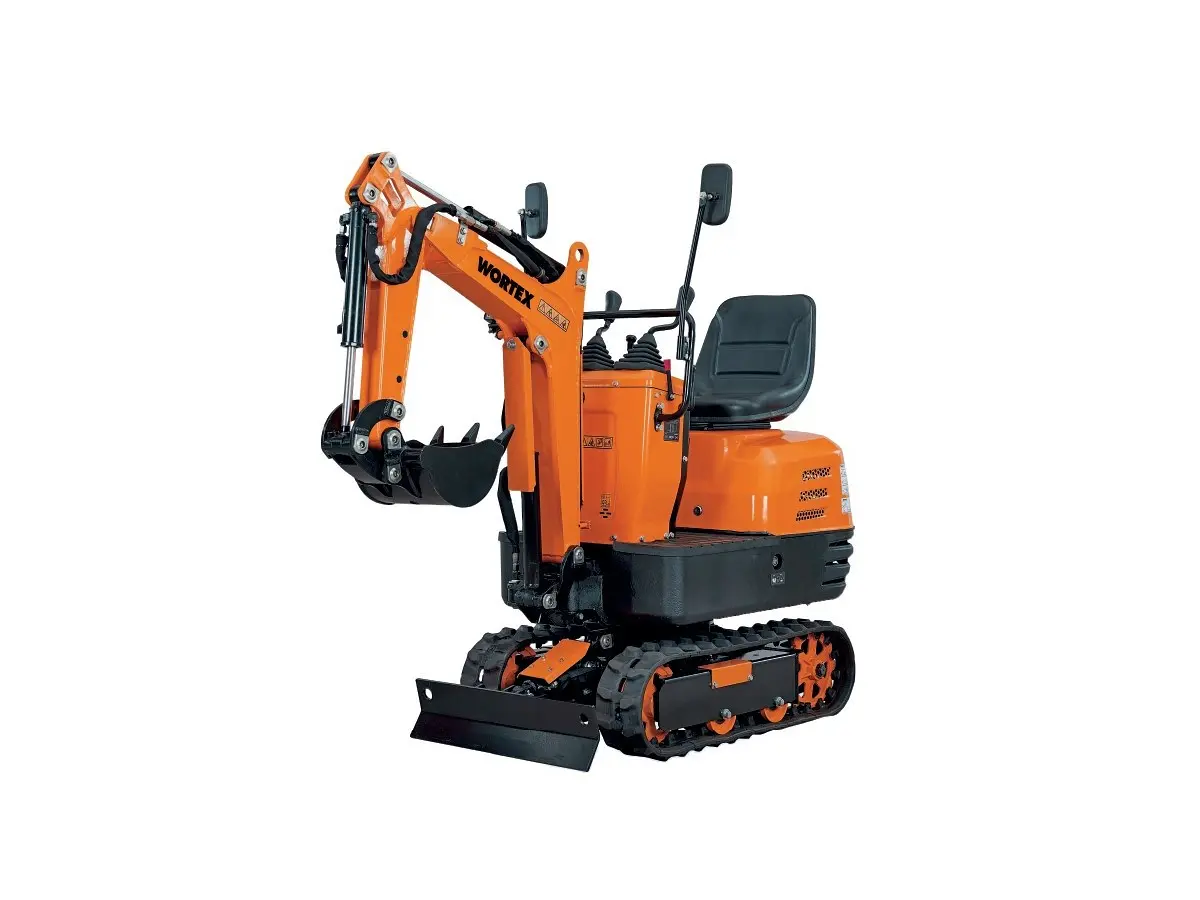

Wortex RAPTOR 600 Mini Excavator

• Safety, flexibility, low consumption and pollution
• Excellent ability to work in confined spaces and ease of transport

TECHNICAL DATA

Operating weight: 562 kg
Bucket capacity: 0.011 m³
Bucket width: 290 mm
Engine: 306cc
Fuel: gasoline
Starting system: key start, ignition and shutdown + recoil
Travel speed: 2.1 km/h
Traction force: 4.36 kN
Rotation speed: 9.3 rpm
Slope grade: 25°
Ground contact pressure: 26.3 kPa (0.27 kgf/cm²)
Track type: rubber
Track width: 150 mm
Pump capacity: 2 x 9 L/min
Hydraulic tank: 12 L
Parking brake: Hydraulic lock
