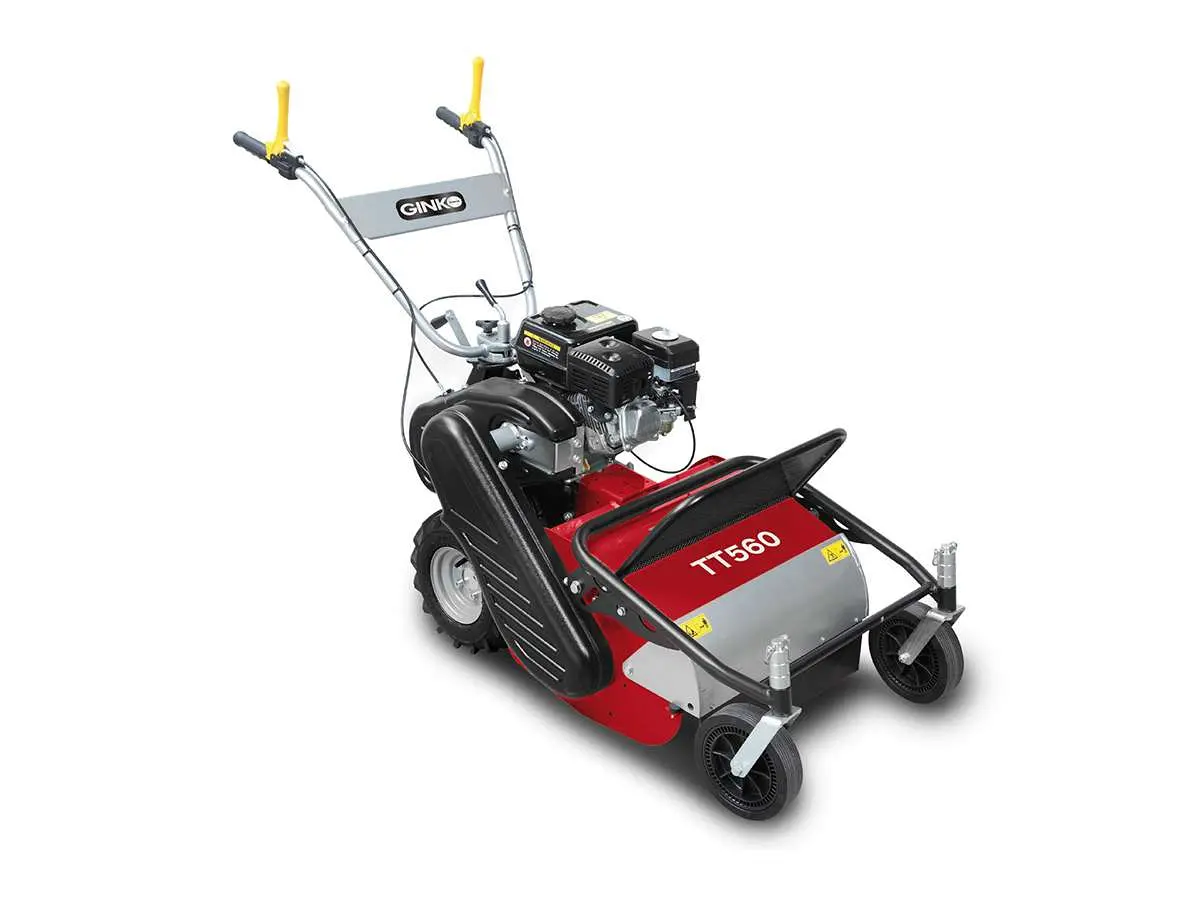

Ginko Chopper TT560 - Ginko

• AMC 200 Petrol Engine
• Horsepower: 3.9 HP
• Displacement: 163 cm³
• Cutting Width: 50 cm
• Cutting Height: 15-80 mm
• Rotor: 24 Y-shaped blades
• Pneumatic Wheels 13 x 500 - 6
• Handles: height and lateral adjustable
• Mechanical Transmission: 3 speeds 2F+1R
• Wheel Axle: rigid
• Disc brakes combined with clutch lever
• Wheels: 13 x 500-6
• Weight: 110 Kg

TECHNICAL DATA
Engine
Type: Honda GP 160 Single-cylinder 4-stroke - OHV
Cylinder Type: Aluminum
Displacement: 163 cm³
Compression Ratio: 8.5 : 1
Max RPM: 3600 rpm
Torque Value: 17 Nm / 1.94 kgfm / 2500 rpm

Machine Details
Working Width: 50 cm
Cutting Height Adjustment: from 15 to 80 mm
Rotor: made of tempered steel
Chopping System: 24 Y-shaped blades
Wheels: pneumatic 13 x 5.00 - 8


Dimensions and Weight
Length: 157 cm (including handles)
Width: 80 cm
Height: 112 cm
Weight: 110kg
