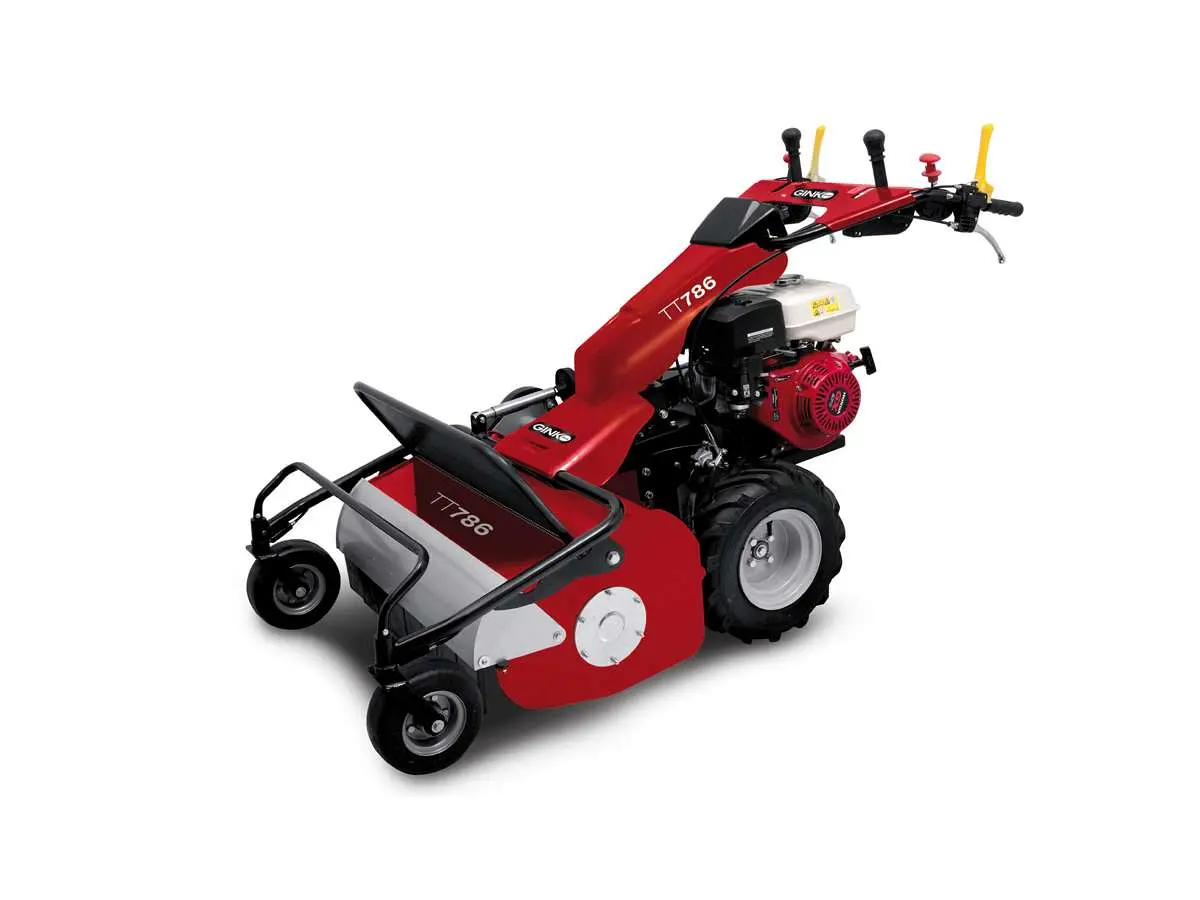

Ginko TT 786 Chopper - Ginko

• The GINKO-MGM brush cutters are Made in Italy products, guaranteeing reliability, build quality, and materials
• The TT 786 model is a shorter and more compact version compared to common petrol brush cutters
• Powerful Honda GX 390 engine
• Capable of cutting invasive grass of any diameter, height, and size (up to 1.5 m tall) finely shredding it, thanks to its 40 Y-shaped blades
• Also grinds brushwood and brambles (up to 2.5 cm) in any condition, even in fairly rough terrain
• 6-speed oil-bath gear transmission: 4 forward gears and 2 reverse gears with reducer
• Brush cutter deck made from exceptionally thick steel sheet
• Working width: 50 cm
• Front steel tilting cover
• Displacement: 390 cm³
• Power: 3.6 kW
• Weight: 195 kg

TECHNICAL DATA

Engine
Type:

• Honda GX 390 Single-cylinder 4-stroke - OHV

Cylinder type:

• Aluminum

Displacement:

• 390 cm³

Compression ratio:

• 8.5 : 1

Max RPM:

• 3600 rpm

Torque value:

• 19.1 Nm / 1.94 kgfm / 2500 rpm

Tank capacity:

• 5.3 Liters

Consumption:

• 2.4 lt/h at 3600 rpm

Machine details
Working width:

• 50 cm

Cutting height adjustment: from 20 to 80 mm via handwheel
Rotor:

• made of tempered steel

Cutting system:

• 40 Y-shaped blades

Wheels:

• Large TRACTOR pneumatic wheels for agriculture: 16 x 6.50 - 8

Dimensions and weight
Length:

• 177 cm (including handles)

Width:

• 86 cm

Height:

• 114 cm

Weight:

• 195 kg
