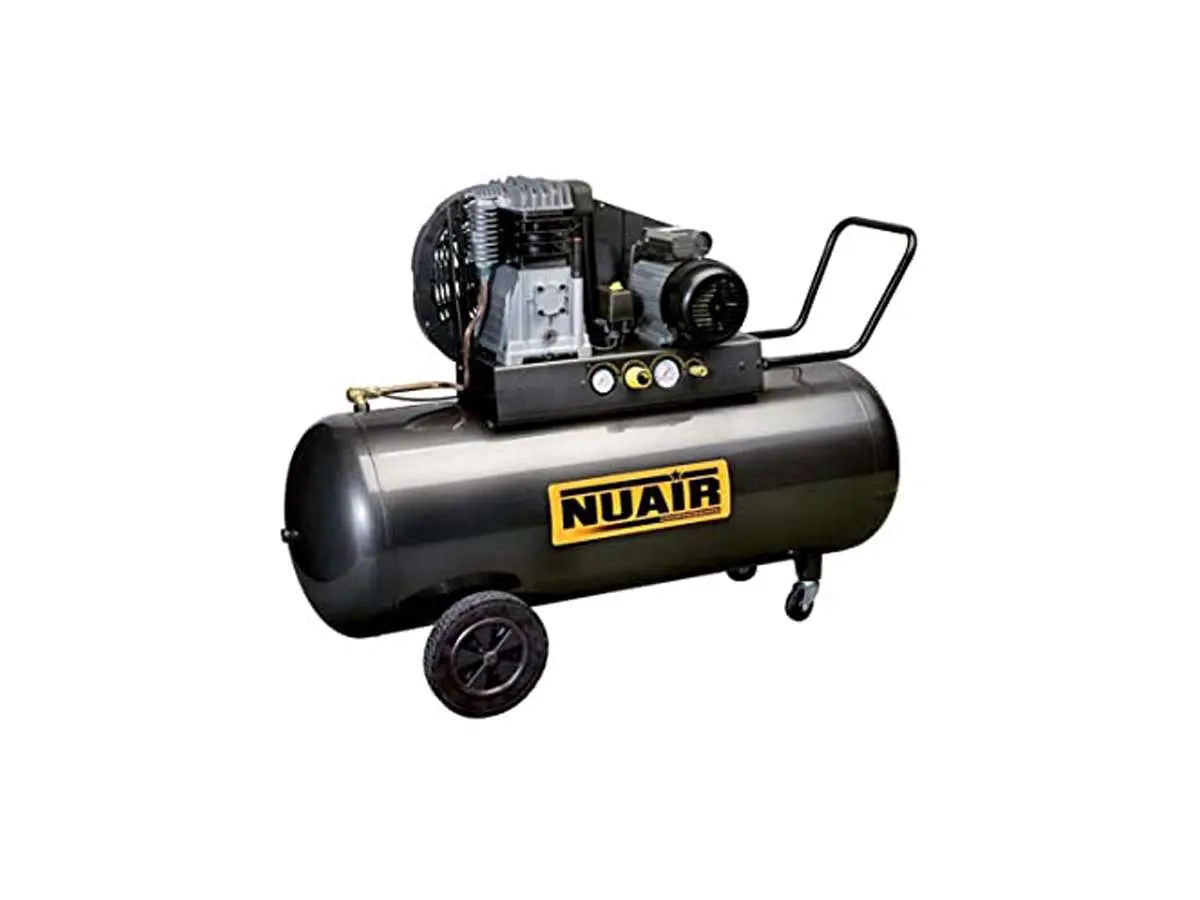

Nuair B3800 100l Belt Compressor - NUAIR

• The nuair B3800/100 CM3 compressor is a benchmark for professionals and demanding hobbyists who want a reliable, high-performing, and durable machine
• It features an electric motor with a power of 3HP, has an air intake capacity of 390 liters per minute, and can deliver a maximum pressure of 10 bar
• The motor is protected by an overload switch with manual reset
• The compressor is equipped with an electromechanical pressure switch, pressure reducer with gauge, and universal quick coupling
• It has a large 100L compressed air storage tank
• Weighing 73 Kg, it can be easily transported thanks to its wheels and top handle


TECHNICAL DATA


Tank: 200 liters
Power: 2.2 kW - 3 Hp
Cylinders: 2
Max pressure: 10 bar
Lubricated: yes
Motor speed: 1,100 rpm
Air intake: 390 lt/min
Power supply: 230V
Dimensions: 1,435 x 475 x 1,125 mm
Weight: 105 Kg
