New
Pramac Automatic ATS Frame PY000A000C1
Code: PY000A000C1
€ 269,90
Available
Fast delivery with value insured
Secure payments
Other information

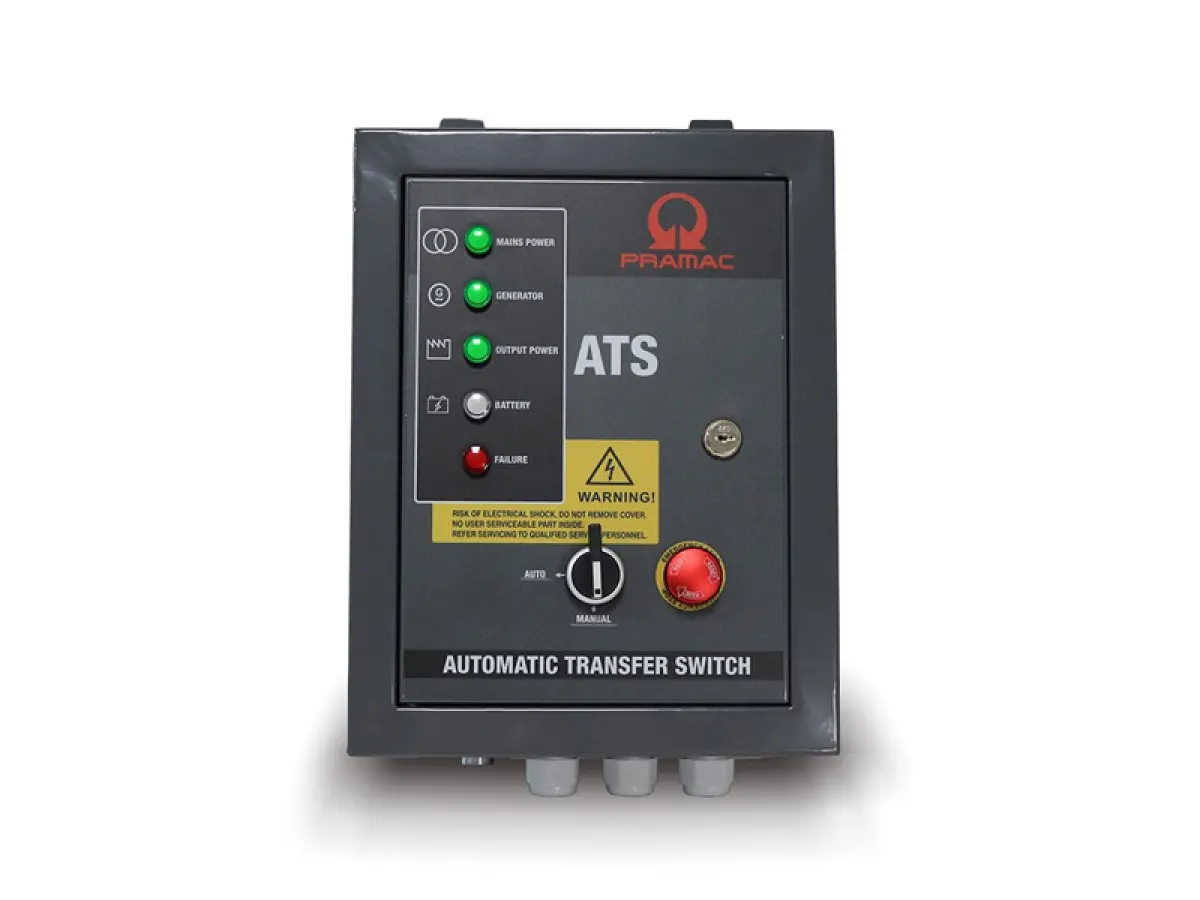

- The PY000A000C1 automatic ATS panel for power generators allows the connection of the generator to the home network, enabling automatic start-up in case of a power outage. The ATS panel is compatible with Pramac PMi4500 and PMi6500 power generators
- The Pramac ATS PY000A000C1 is used to transfer the electrical load from a primary source (grid) to an emergency power source (generator)
- When the main power source is interrupted, the ATS allows the generator to supply electricity to the connected electrical loads
- If the primary power source stops supplying energy, the Pramac ATS automatically starts the generator
- After approximately 1 minute, the ATS supplies power to the generator’s electrical load. If the main power source is restored, the ATS shuts down the generator after about 1 minute
- The emergency stop button allows immediate shutdown of the generator and interrupts the battery charging function
- Indicator lights for mains power, generator, load, battery, and fault are included. Equipped with ATS multipin connector and signal cable
- Cable length 8 m
