Other information

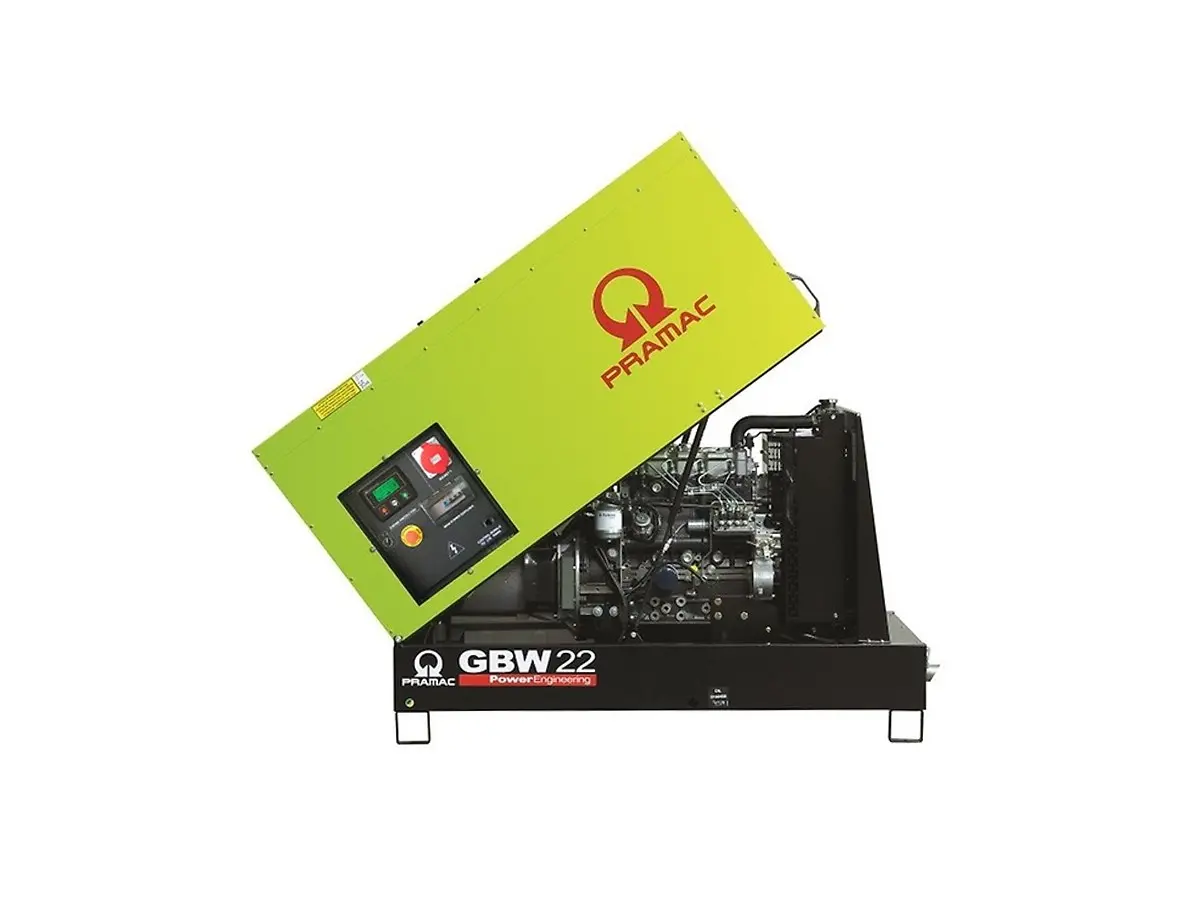

- PRAMAC GBW22Y three-phase generator set with 15.4 KW diesel engine at 1500 rpm
- The generator set alternator is brush type with compound voltage regulator; the Yanmar diesel engine makes the generator highly reliable as it is built and designed using high-quality materials
- Thanks to its enclosure, this generator set is super silent
- Easy to transport, install and position thanks to its compact size, this model is ideal for power outage emergencies, construction sites, mobile workshops, and industrial applications
- Maximum three-phase power: 15.48 KW
- Fuel: Diesel
- Engine: Yanmar 4TNV88-BIPGE STAGE V
- Starting system: Electric
- Consumption: 5 Lt/h at 100% load
- Weight: 560 Kg
TECHNICAL DATA
Output
Frequency: 50 Hz
Voltage: 400 V
Power factor: ? 0.8
Phases: 3
Power
Emergency power ESP: 19.25 Kva
Emergency power ESP: 15.40 Kw
Continuous power PRP: 18.27 Kva
Continuous power PRP: 14.62 Kw
Engine
Engine: Yanmar
Displacement: 2190 cm³
Aspiration: Natural
Oil sump capacity: 7.4 l
Cooling system capacity: 2.7 l
Fuel: Diesel
Model: 4TNV88-BIPGE
Starting system: Electric
Cooling system: Water
[50HZ] Exhaust emission level: Stage V
Alternator
Alternator: Mecc Alte
Model: ECP28-M4 C
Voltage: 400 V
Frequency: 50 Hz
Power factor: ? 0.8
Poles: 4
Type: Brushless
Voltage variation: 1 %
Class: H
Protection: IP 23
Sockets
No.1: 3P+N+T CEE 400V 32A
No.1: 3P+N+T CEE 400V 16A
No.2: 2P+T CEE 230V 16A
No.1: 230V 16A SCHUKO
