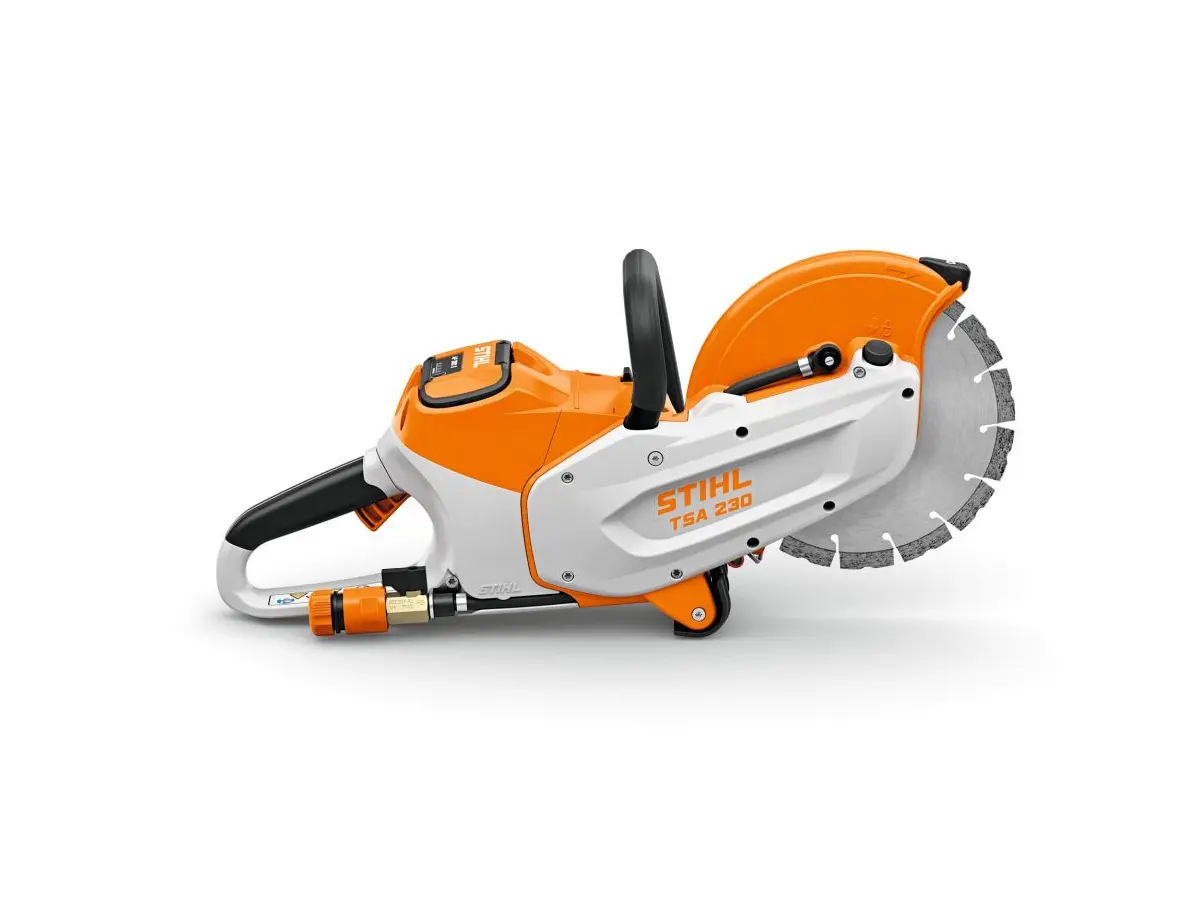

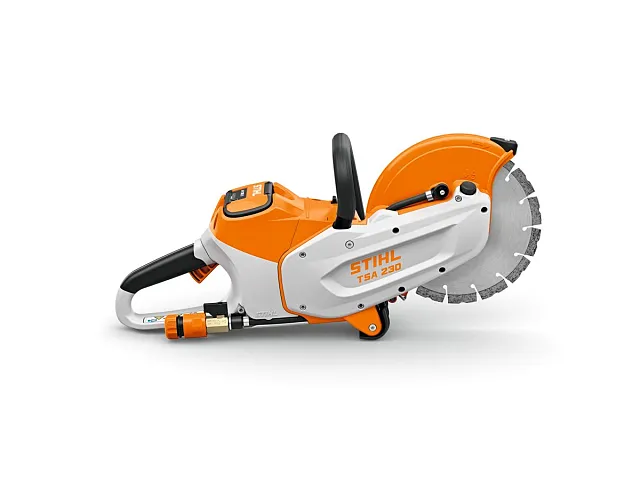

Stihl Battery-powered Cut-off Saw TSA 230

Compatible with AP series batteries

• The powerful yet manageable STIHL TSA 230 cordless cut-off saw is ideal for professional applications in gardening and landscaping, road construction, roofing and interiors, as well as for multiple uses in civil and industrial construction
• Thanks to its balanced weight distribution, compact design, low weight, and high power, you can perform short cuts on building and paving stones, cut construction materials, cut steel reinforcement and metal profiles, as well as cut metals and composite materials even in tight spaces and with high precision.
• With the STIHL TSA 230 cut-off saw’s 230 mm cutting disc, cutting depths of up to 70 mm are possible.
• The ergonomic handle of the STIHL TSA 230 ensures a secure grip and precise guidance during cutting. The powerful brushless EC motor operates with almost no wear. Its electronic control always optimally adjusts power and speed to the material being cut.
• Changing the cutting disc is very simple: just press the spindle lock, loosen the fixing screw with a wrench, and then tighten it again. Other advantages include the quick-stop brake, which slows the cutting disc within seconds, and the STIHL magnesium guard with integrated water guide.

Sold without battery and charger

TECHNICAL DATA

CUT-OFF SAW
Weight: 3.9 kg
Cut-off disc: 230 mm
Sound pressure level: 104 dB(A)
Sound power level: 115 dB(A)
Vibration value left: 4.3 m/s²
Vibration value right: 2.4 m/s²
Maximum cutting depth: 70 mm
Nominal voltage: 36 V
Overall length: 550 mm

BATTERY
Recommended battery: AP 300 S
Operating time with AP 200 S battery: 18 minutes
Operating time with AP 300 S battery: 20 minutes
Operating time with AP 500 S battery: 24 minutes



EQUIPMENT

EC MOTOR

HIGH FUNCTIONALITY AND LOW MAINTENANCE. Thanks to its compact design, low weight, and high functionality, the EC motor allows for energy-efficient operation. Additionally, this motor is distinguished by its long service life.

ERGONOMIC HANDLE

PRECISE TOOL CONTROL. The ergonomic handle allows for a firm grip on the tool and enables precise cuts even on the hardest rocks. The curved handle offers a better grip position and maximum comfort during work.

MAGNESIUM PROTECTION

LIGHTWEIGHT AND STABLE. The cutting disc guard ensures protection from flying chips and, as much as possible, from the cooling water of the disc. Made of die-cast magnesium, it is particularly light and robust.

STIHL EC TECHNOLOGY

The STIHL EC brushless electric motor operates with high energy efficiency and virtually no wear.

WATER CONNECTION

COOLING AND DUST REMOVAL. When working with the tool, a constant flow of water is provided to clean the cutting disc. This serves to cool the cutting disc and prevent dust formation.
