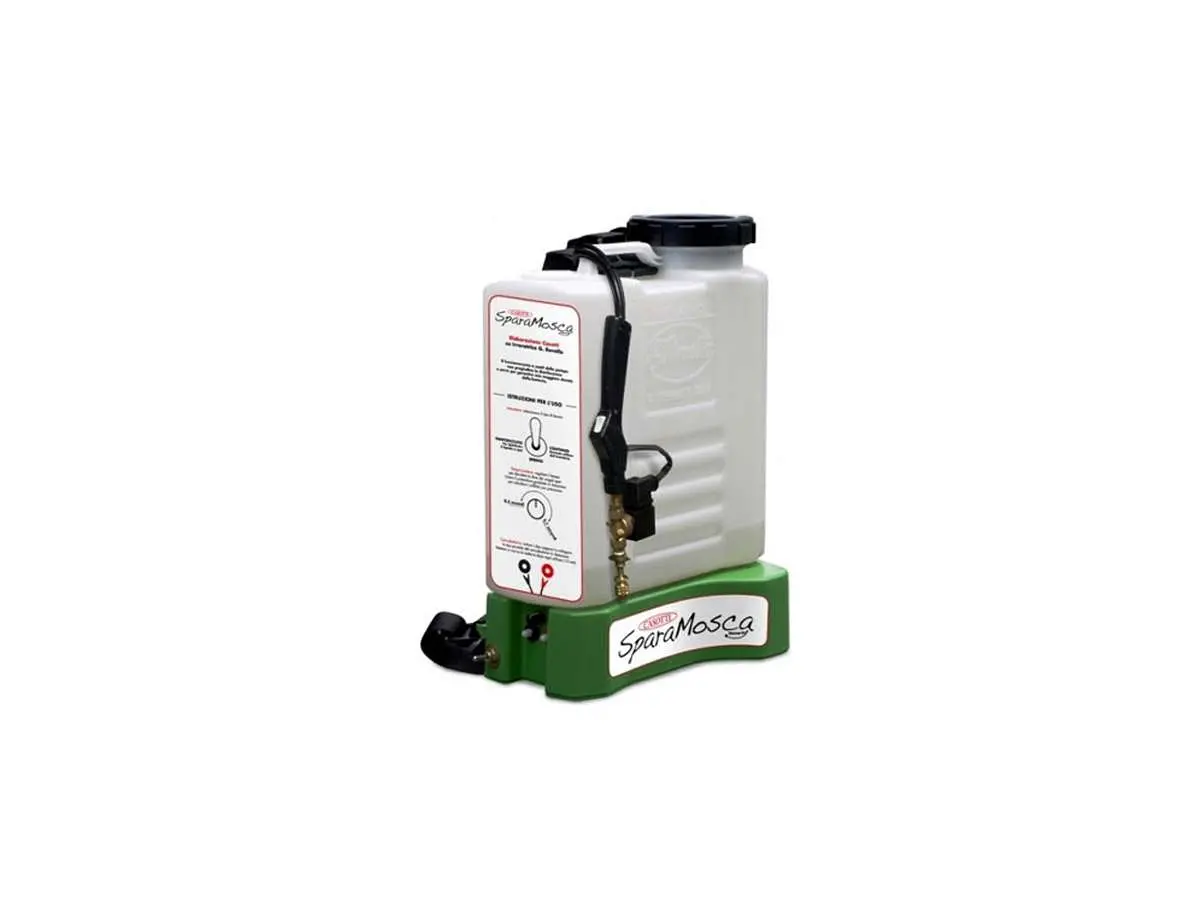

Casotti SPARAMOSCA Spraying Pump - Casotti

 is a professional electric agro-doser, specifically designed to distribute the product in microdoses.

• Microdose mode: used to distribute Spintor Fly and similar products against olive and fruit flies (cherry, persimmon, citrus). It is equipped with an electronic system to achieve semi-automatic dispensing of single sprays. A dial allows precise adjustment of the spray volume, from a minimum of 5 ml up to a maximum of 60 ml each. Every time the button on the gun is pressed, you can be sure to spray the same preset dose (for example, 20 ml). The tank has a capacity of 12 liters (covering 2 hectares, assuming a mixture distribution of 5 liters per hectare).
The spray can reach up to 6 meters.

• Standard mode: continuous flow of the spray for the distribution of traditional phytosanitary products.

Milliliter-precise spray technology: it is equipped with a small electronic control unit located in the body of the tank.
A dial connected to the control unit allows precise adjustment of the dose to be distributed with milliliter accuracy for each spray. Each time you want to activate the spray, you must press the button located on the gun. With SPARAMOSCA you can be sure to always distribute the right amount of product per plant and to perform a uniform treatment across the entire plot.

TECHNICAL DATA


Net weight: 6.670 Kg
Gross weight: 8.500 Kg
Dimensions: 36 x 50 x 20 cm
Package dimensions: 60 x 40 x 30 cm
Voltage: 12V
Pump: Electric membrane
Free flow rate: Max. 3 l/min
Nozzle flow rate: 110° 003 1 l/min
Pressure: 3.1 bar
Tank capacity: 12 Liters
Battery life (continuous): 4 h
Battery life (timed 20 ml): approx. 9,000 sprays
Recharge cycle duration: 12 h
Charger: Primary 230 V. 50 Hz / Secondary 12V 10VA
Noise level: Less than 70 dB
