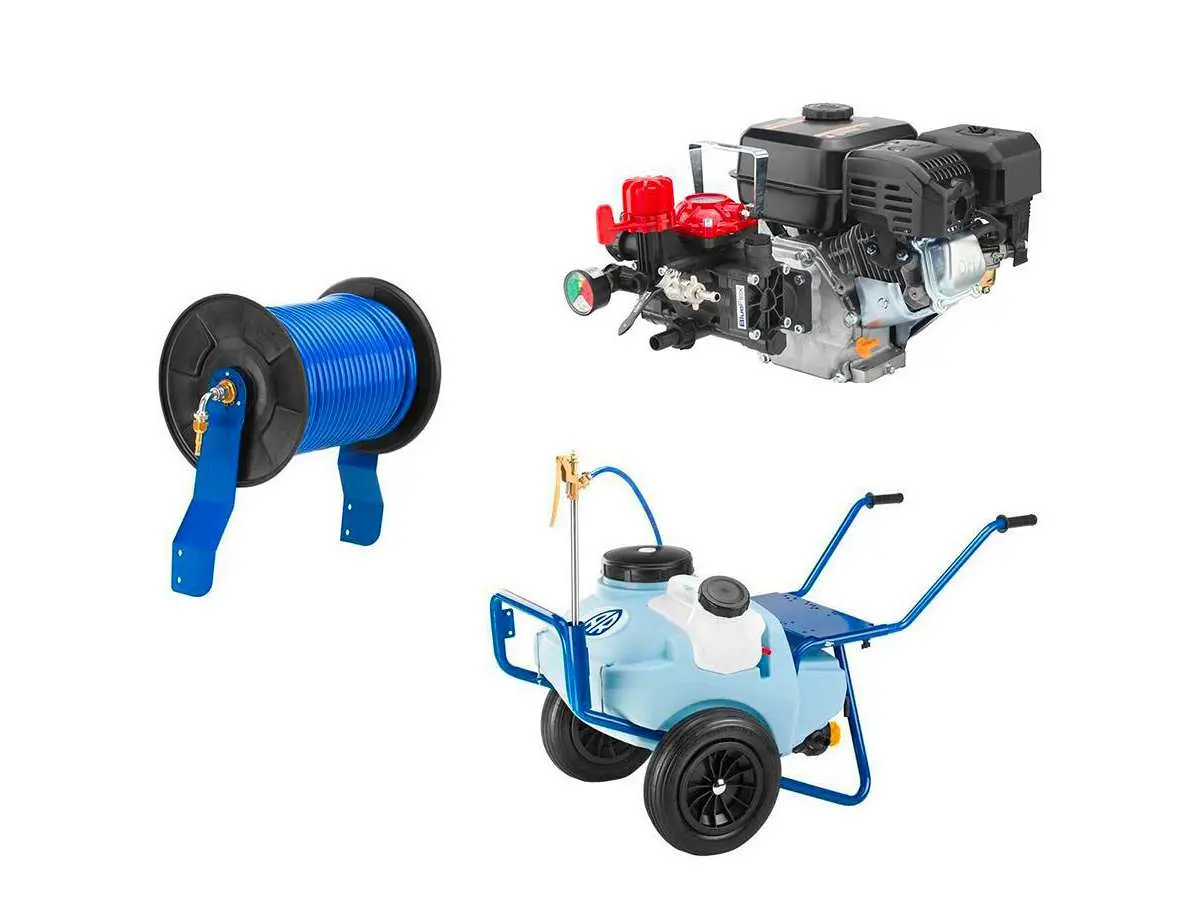

Annovi reverberi 130 l Spraying Kit with Combustion Engine - Annovi Reverberi

• Annovi Reverberi pumps are quality pumps, extremely efficient and made with every detail to perform at their best
• The AR252 2-diaphragm Pump consists of
• A pressure adjustment knob from 0 to 25 bar with an integrated stop
• A glycerin-filled pressure gauge to monitor the pressure
• A delivery control valve
• This motor pump is paired with a RATO180 4-stroke gasoline engine
• A highly efficient combustion engine designed to last over time
• This motor pump makes the Annovi Reverberi spraying wheelbarrow ideal for transferring clean water for irrigation or for treating plants, olive groves, vineyards, and orchards
• The wheelbarrow frame is built with durable materials for long-lasting use
• The anticorrosive polyethylene tank, equipped with an external indicator, filter, and total drainage system, can hold up to 130 liters
• Additionally, in a recess of the tank, there is a removable 5-liter hand-washing container for direct contact with various products
• There are two compartments: one for the 60 cm lance and one for winding the 10-meter rubber hose
• This model can be fitted with a 50-meter hose reel
• They are easy to maneuver thanks to two rubber pneumatic tires that provide better grip even on uneven terrain
• Dimensions: 100 x 79 x 79 cm

TECHNICAL DATA

Maximum flow rate: 24.6 l/min
Maximum pressure: 25 bar
Net weight: approximately 23 kg

ENGINE

Power: 5.5 HP / 4.1 kW
Engine: Rato EHR 180
Fuel: Gasoline
Dimensions: 45X34X40

PUMP

Type: AR 252 AP
Version: SP SGC
No. of diaphragms: 2
Flow rate: 24.6 l/min
Flow rate: 6.5 gpm
Pressure: 25 bar
Pressure: 362 Psi
Power: 1.42 Hp
RPM: 650 rpm
