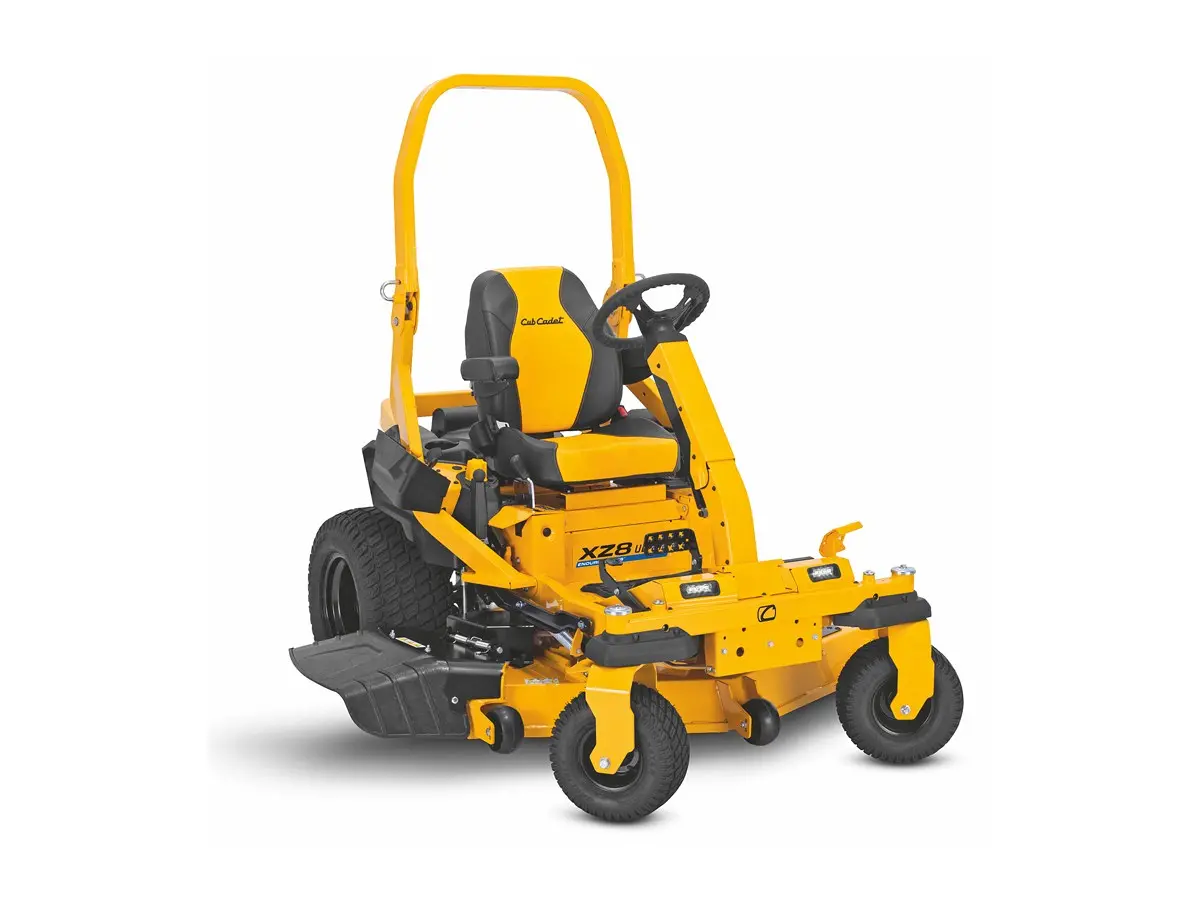

Cub cadet XZ8 S137i Lawn Tractor

• The Cub Cadet XZ8 S137i is a professional-grade zero-turn lawn tractor, perfect for large areas up to 13,000 m²
• Thanks to the 747cc KOHLER EFI V-Twin engine and 137 cm cutting width, it delivers outstanding performance in precision, power, and durability

TECHNICAL DATA

ENGINE

Engine: KOHLER EFI V-TWIN
Displacement: 747 cc
Rated power: 13.8 / 2500 kW/min
Fuel tank capacity: 20.8 l

TRANSMISSION

Transmission: Dual Hydrostatic (Hydrogear ZT3200)

CUTTING SYSTEM

Work area: 13,000 m2/h
Cutting width: 137 cm
Cutting height: 25–114 mm
Cutting options: 3-in-1 option
Number of blades: 3
Cutting height positions: 16
Deck wheels: 2

DISCHARGE SYSTEM

Bag capacity: optional 380 l

FRAME

Turning radius: 0
Wheels (F/R): 13 x 6.5 / 23 x 12

ELECTRICAL

Battery: 210cca AGM
Lights: LED

COMFORT

Steering wheel: Soft-Grip steering wheel, tilt steering column
Reverse mowing: Standard

DIMENSIONS

LpA /LwA/LwAg: 89.9 / 104.3 / 105
Body vibration value: (K-factor) (m/s2) 0.4 / 0.2
Hand uncertainty value: (K-factor) (m/s2) 2.8 / 1.4
Dimensions (L / W / H): 218 / 153 / 121 cm
Net weight: 449 Kg
