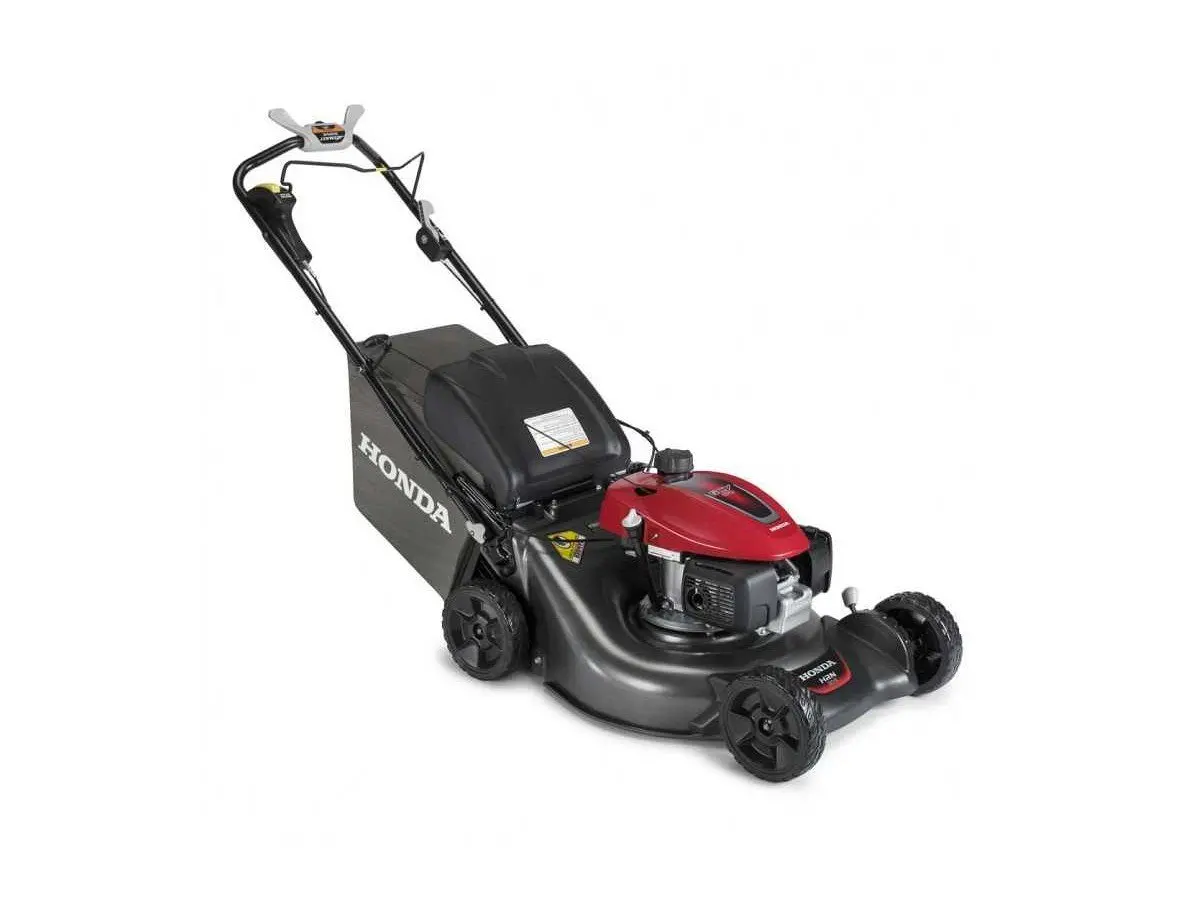

Honda HRN 536 VY Roto-stop Lawn Mower

• The new HRN 536 VY lawnmower is the latest Honda model that replaces the HRG 536 range
• The latter features the ROTO STOP system, meaning that when the lever is released the engine remains running but only the blades stop
• Equipped with the GCV170x engine compliant with the latest anti-pollution regulations
• It is fitted with the Versatool system, a patented Honda technology that allows cutting with collection or mulching thanks to the double blade, upper and lower
• A new feature introduced is the centralized cutting height adjustment system on both front wheels and both rear wheels, so by adjusting the single lever on each axle, both front wheels or both rear wheels are adjusted; the adjustment system is also housed in a high-resistance thermoplastic resin guard on the front part and the same is present on the rear axle, with the front also acting as a sort of bumper and being rust and oxidation resistant. The rim and tread design have been changed from the old HRG 536 model to improve performance on slippery terrain
• The drive features a type B configuration with belt engagement and adjustment
• The clutch system allows the user, when pulling the machine backwards, to have free wheels without any resistance, making the machine easier to pull back

TECHNICAL DATA:

Function

Forward speed (Meters per second): 0-1.7
Cutting deck material: Steel
Blade brake: Roto-stop®
Mulching system: Versamow™ selective mulching
Cutting height positions: 7
Grass bag capacity (Liters): 70
Noise level (dB(A)): 98
Garden size: Large gardens (over 500 sqm)

Dimensions
Length (mm): 1550
Depth (mm): 575
Height (mm): 1037
Dry weight (kg): 40

Cutting
Cutting deck size (cm): 53
Cutting height (mm): 27-100

Engine
Engine: OHC 4-stroke
Engine displacement (cc): 167
Engine model: GCVx 170
Rated power (kW/ rpm): 3.2/2,950
Fuel tank capacity (liters): 0.91
Transmission type: SMART Drive®
