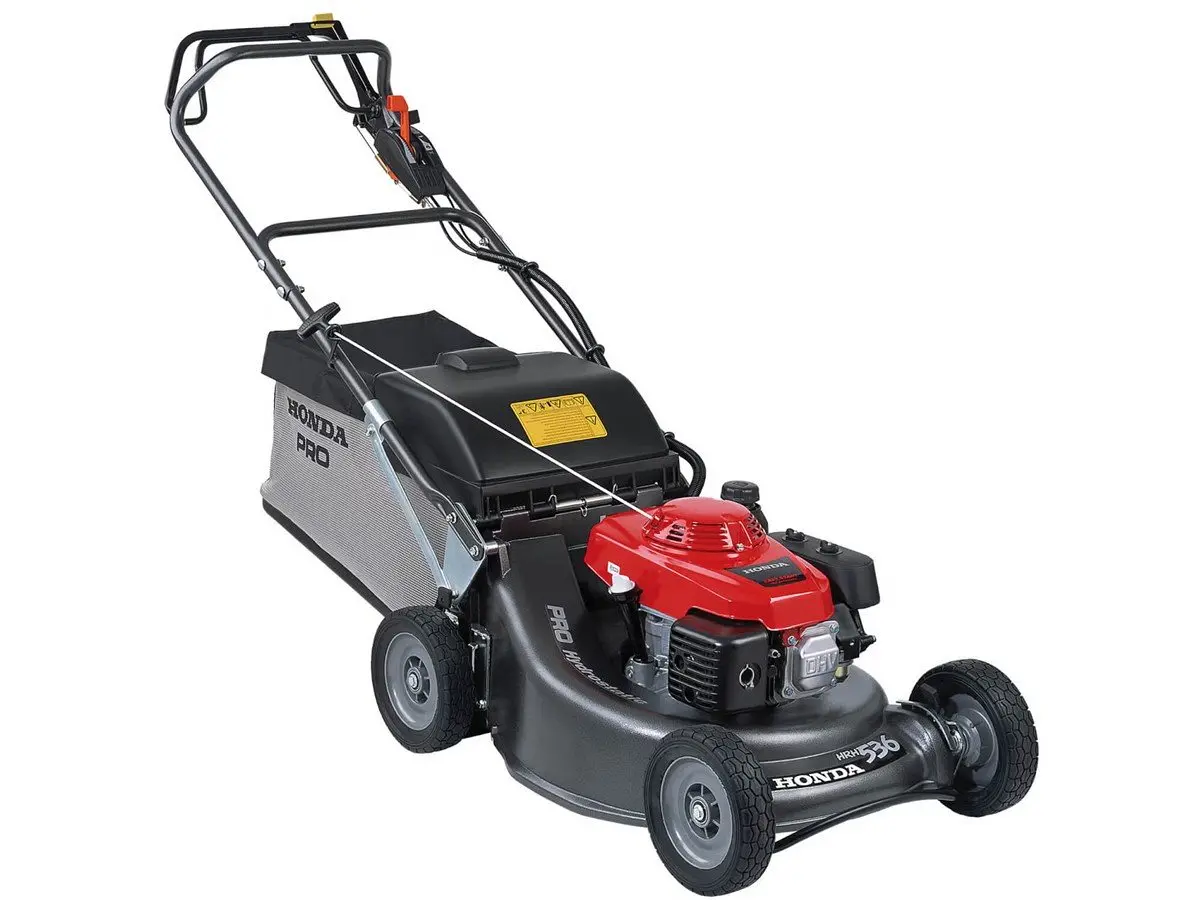

Honda HRH 536 HX Lawn Mower Hydrostatic Drive

• The HRH 536 HX is equipped with the GX160 163 cm³ "PRO" engine, which delivers stable and reliable power smoothly and quietly
• It features a hydrostatic transmission with a driveshaft, much more robust and reliable than belts and chains, fully sealed to prevent dust contamination
• The cutting deck is made of cast metal alloy, protected by a sturdy front bumper, with a 53 cm blade designed to bend without breaking upon impact with a solid obstacle, thus avoiding damage to the machine and potential hazards to the operator
• The Roto-stop system allows the blade to be stopped without turning off the engine, for example when crossing a gravel path or emptying the collection bag
• The sturdy handles are reinforced against bending, connected by a triple joint to prevent damage during cutting and transport
• The collection bag has a capacity of 83 liters, made of ultra-fine mesh that blocks dust entry without hindering the airflow used for grass collection. It can be removed and emptied with extreme ease

TECHNICAL DATA

Function

Forward speed (Meters per second): 0.8-1.4
Cutting deck material: Aluminum
Blade brake: Roto-stop®
Cutting height adjustment positions: 6
Grass collection bag capacity (Liters): 83
Noise level (dB(A)): 98
Grass collection time for 100 sqm lawn (min:sec): 07:22
Mulching time for 100 sqm lawn (min:sec): 03:09
Garden size: Large gardens (over 500 sqm)

Dimensions
Length (mm): 1575
Depth (mm): 574
Height (mm): 1020
Dry weight (kg): 60.2

Cutting
Cutting deck size (cm): 53
Cutting height (mm): 21-76

Engine
Engine: OHC 4-stroke
Engine displacement (cc): 163
Engine model: GXV160
Rated engine power (kW/ rpm): 2.7/2,800
Fuel tank capacity (liters): 1.5
Engine oil capacity (liters): 0.65
Transmission type: Hydrostatic
