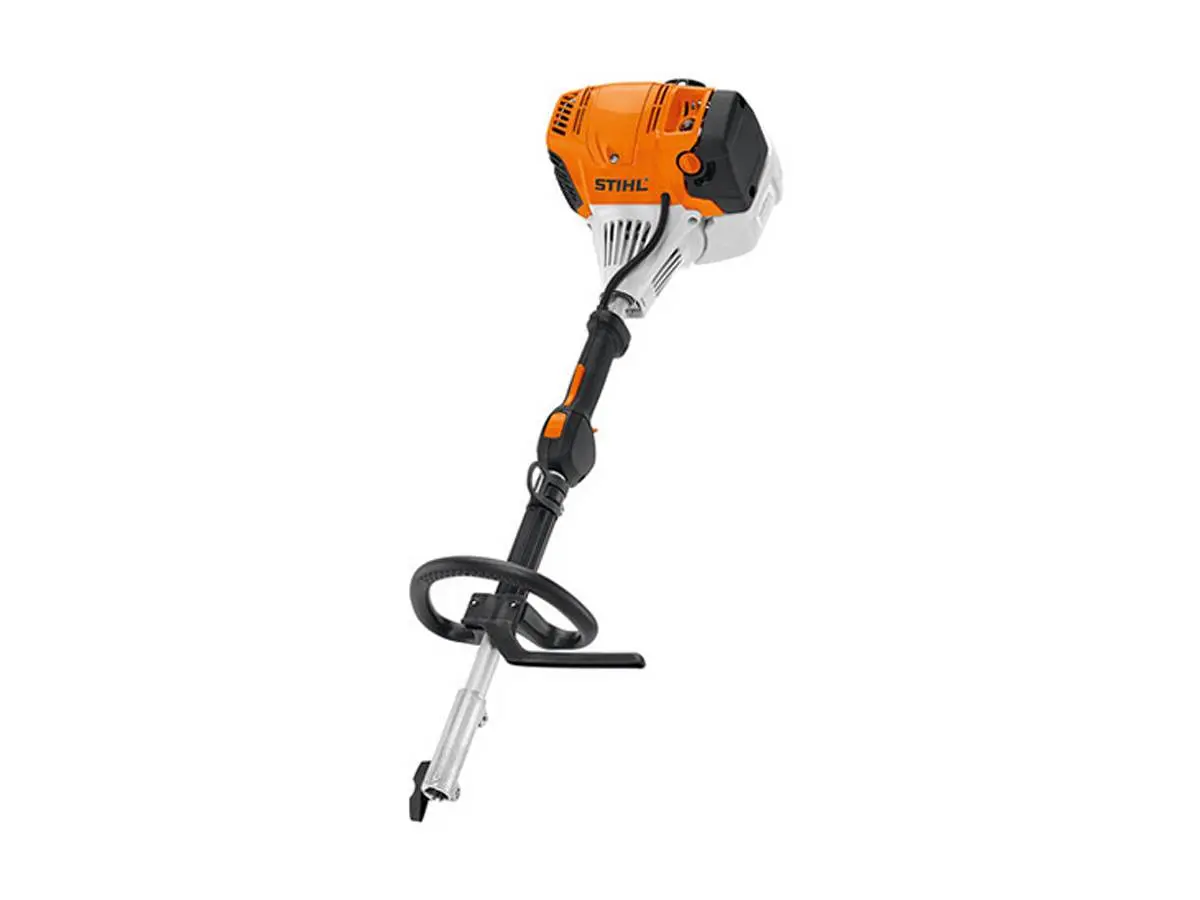

Stihl Kombi Engine KM 131 R

• Powerful Kombi engine for professional use with high demands
• Allows the use of a wide variety of tools to perform very different tasks (e.g., brush cutter, roller brush, pruner, hedge trimmer, tiller, blower, etc.)
• Tool change is easy and quick and is done simply by rotating the hand
• Stihl Ergostart easy start procedure for more comfortable ignition
• Stop button
• Larger tank for longer operating times
• Paper filter
• Loop handle
• 4-MIX® engine
• Displacement: 36.3 cm³
• Power: 1.9 HP
• Weight: 4.4 kg

NOT COMPATIBLE WITH FSB-KM TOOL

TECHNICAL DATA
Weight: 4.4 kg
Sound pressure level: 110 dB(A)
Vibration level left/right: 6.1 / 6.5 m/s²
Power: 1.9 HP
Tank capacity: 0.71 l

COMPATIBLE TOOLS

Rotary roller brush kit for Kombi engine KW-KM

Hedge trimmer kit for Kombi engine HL-KM 0°

Brush cutter kit for Kombi engine FS-KM with lawn blade

Sickle bar kit for Kombi engine FH-KM 145°

String trimmer kit for Kombi engine FCB-KM

Shaker kit for Kombi engine SP-KM

Rotary tiller kit for Kombi engine BF-KM

Reciprocating saw kit for Kombi engine RG-KM

Hedge trimmer kit for Kombi engine HL-KM 145°

Pruner kit for Kombi engine HT-KM

Blower kit for Kombi engine BG-KM

Brushcutter kit for Kombi engine FS-KM with cutting head

Rotary brush kit for Kombi KB-KM

EQUIPMENT

Universal handle with limiter
The circular handle is suitable for most gardening and ground work. It is particularly practical for finishing and cleaning tasks in confined spaces

4-MIX Engine
Combines the advantages of both 2-stroke and 4-stroke engines. Less exhaust gas, no oil changes, pleasant noise. Excellent power and high torque

Decompression System
When starting the engine, the decompression system automatically opens the intake valve. Pressure peaks are thus absorbed, significantly reducing the force exerted on the starter rope

Anti-vibration System
Special spring-mounted damping elements reduce the transmission of vibrations from the engine to the operator's hands and arms. This makes work less tiring

Control Handle with Stop Button
The equipment is always ready to start

Quick Coupling
Without the need for tools, it allows the Kombi system to be quickly separated into two parts that are easy to transport and store, and then reassembled

Stop Button
After switching off, the control lever automatically returns to the operating position.

Manual Fuel Pump
Thanks to the manual pump, fuel is directed into the carburetor, thus facilitating restarting after a long work break
