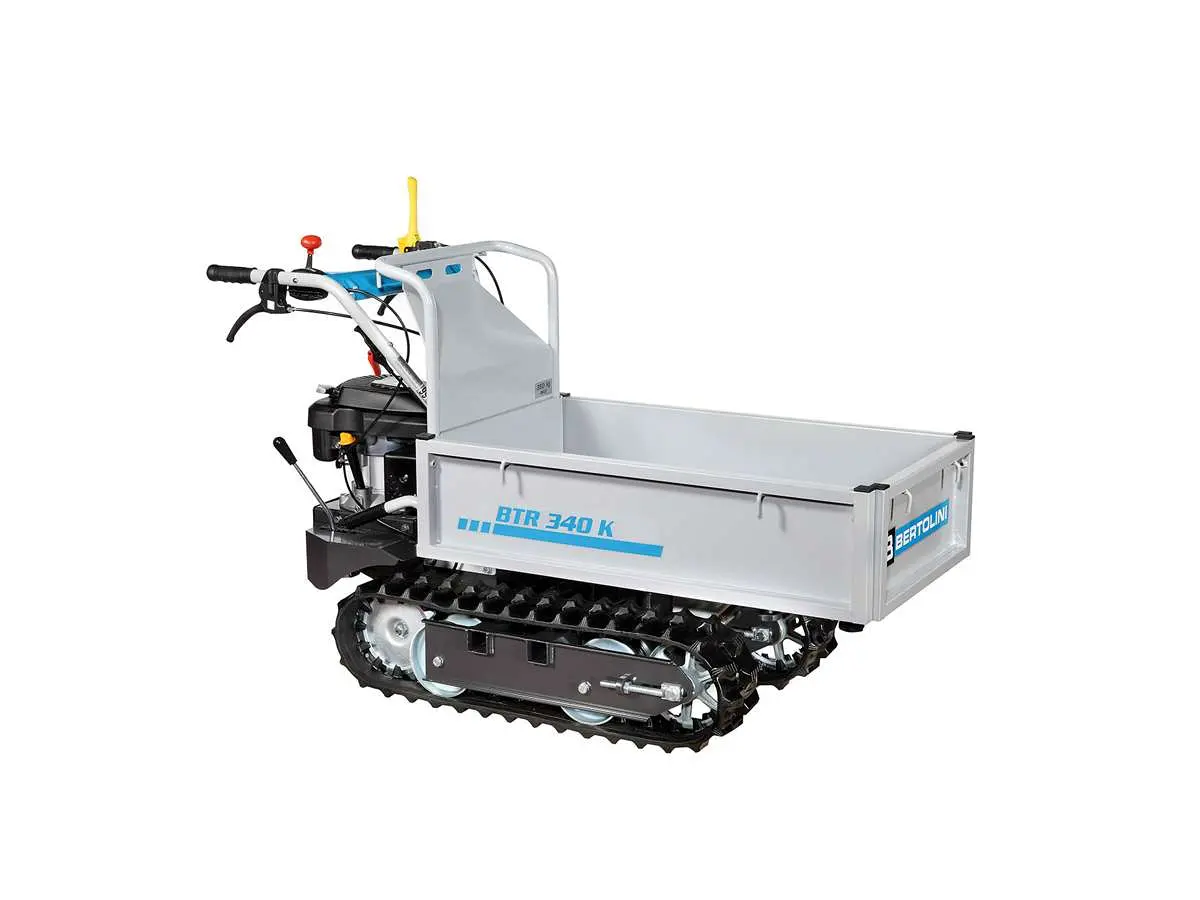

Bertolini BTR 340 Wheelbarrow

• Motorized wheelbarrow designed for demanding private users
• Suitable for transporting a wide variety of materials such as firewood, fruit crates, bulky items
• This machine is extremely practical and easy to handle
• Ideal for moving over all types of terrain
• Handlebar lever for gear engagement
• Speed selector control with lever
• Manual tipping with automatic locking system
• Gearbox: 4 speeds (2 forward + 2 reverse)
• Load capacity: 350 Kg
• Lift/tipping: manual
• HONDA GCVx 170 OHC GASOLINE ENGINE
  • Horsepower: 4.4 HP
  • Displacement: 166 cm³

  • Weight: 140 Kg
• EMAK K 655 OHV GASOLINE ENGINE
  • Horsepower: 3.9 HP

  • Displacement: 166 cm³

  • Weight: 140 Kg

TECHNICAL DATA

HONDA GCVx 170 OHC GASOLINE ENGINE
Horsepower: 4.4 HP
Displacement: 166 cm³
Weight: 140 Kg

EMAK K 655 OHV GASOLINE ENGINE
Horsepower: 3.9 HP
Displacement: 166 cm³
Weight: 140 Kg

Gearbox: 4 speeds (2 forward + 2 reverse)
Load capacity: 350 Kg
Lift/tipping: manual
Transmission: gear-driven in oil bath
Clutch: belt type, with automatic disengagement upon release of the control lever
Brakes: automatic engagement upon clutch disengagement
Platform: expandable
Tipping angle: 45°
Steering: with independent unlocking and brake controls
Minimum turning radius: 700 mm
PTO: no
Weight: 140 kg
