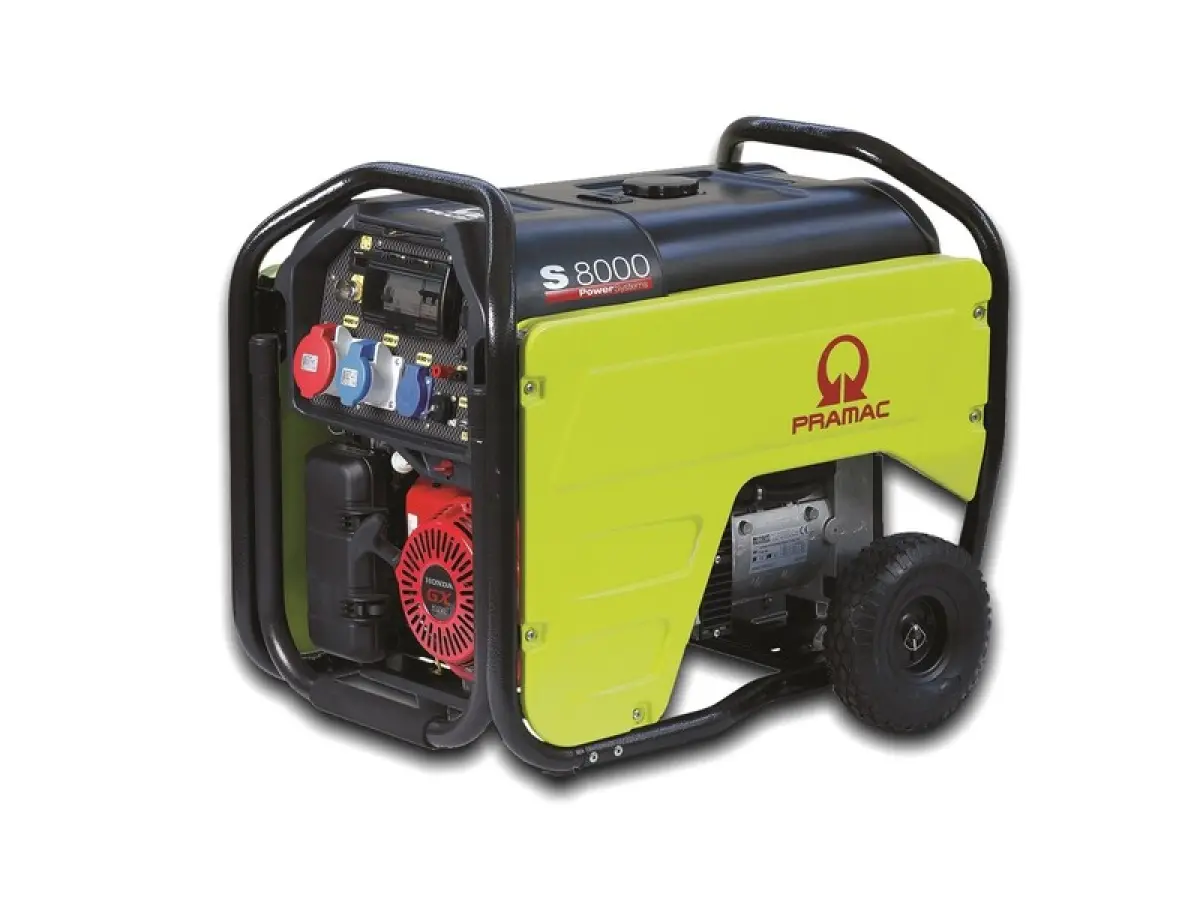

Pramac Generator S8000 400V50Hz #AVR #CONN #DPP

• Professional generator with features and equipment necessary to achieve a superior class product
• Model featuring a powerful alternator engine, gasoline-powered, protected by a sturdy tubular frame, steel side protective covers, enlarged tank, low oil level protection, and pre-installed transport kit
• Innovative and compact design, engineered with special components and parts to meet professional applications

TECHNICAL DATA

OUTPUT
Frequency: 50 Hz
Voltage: 400/230 V
Power factor: 0.8  cos ϕ
Phases: 3
POWER
Emergency Power ESP: 8.3 kVA
Emergency Power ESP: 6.6 kW
Continuous Power Rating COP: 7.0 kVA
Continuous Power Rating COP: 5.6 kW
SINGLE-PHASE POWER
Maximum single-phase rated power: 4.0 kVA
Continuous single-phase rated power COP: 3.7 kVA

ENGINE
Engine Brand: Honda
Model: GX390 Electric
Cooling system: Air
Displacement: 389 cm³
Induction: Natural
Engine speed: 3000 rpm
Speed regulator: Mechanical
Fuel: Gasoline
Oil sump capacity: 1.1 L
Starting system: Electric (+Recoil)

ALTERNATOR
Alternator Brand: NSM
Type: Brush-type
Class: H
Protection: IP 23
Poles: 2
Frequency: 50 Hz
Voltage: 400 V
Voltage regulation system: Electronic
Standard AVR AVR 860
Voltage variation: 1.5 %

DIMENSIONS AND WEIGHT
Length (L) mm 840
Width (W) mm 615
Height (H) mm 753
Weight (dry) kg 112
Fuel tank capacity l 27

AUTONOMY
Fuel consumption at 75% load l/h 2.15
Fuel consumption at 100% load l/h 2.87
Autonomy at 75% load h 12.56
Autonomy at 100% load h 9. 41

NOISE
Acoustic power (LWA) dBA 97
Acoustic pressure at 7 m dBA 69

CONTROL PANEL (CONN DPP)
Integrated panel connected to the generator set complete with:

CONTROLS
- Ignition key: OFF - ON - START
- Air command button
- CONNector (prepared for remote control via AMF automatic panel accessories; RSS remote radio control)

INSTRUMENTATION
- Voltmeter
- Frequency meter
- Hour meter
- Fuel level indicator

PROTECTIONS
- Thermal protections
- Differential protection
- Waterproof switch cover
- 10A fuse (12V DC)
- Oil Guard (low oil level)
OUTPUTS
- 12V DC battery charger

SOCKETS
SCHUKO 230V 16A IP54 1
2P+T CEE 230V 16A IP44 1
3P+N+T CEE 400V 16A IP44 1

AMF - AUTOMATIC INTERVENTION PANEL
Automatic panel with quick-connect CONNector for simple and fast connection to the generator set. The automatic panel monitors the public grid and,
in case of power failure, starts the generator set and supplies the load; upon
grid return, it opens the generator contactor, switches the load to the grid, and commands
the engine shutdown.
Equipment:
- Control and command unit (DGT)
- Phase sensor
- Switching with interlock
- Maintenance battery charger
- Acoustic alarm
- 8m auxiliary connection cable
- External start-stop control
- Emergency stop button
Instrumentation (DGT)
- Mains voltage
- Generator voltage
- Frequency meter
- Hour counter
Alarms & Protections
- Generator voltage out of limits
- Battery charger fault
- Low oil level
- Failure to start
- External stop
RSS - WIRELESS REMOTE CONTROL
Wireless remote control with connector max distance 90m in open field. NB not compatible with AMF panel

Basic structure:
• Load-bearing and protective tubular steel frame (roll bar)
• Side protective steel sheet covers (removable and with adequate openings
to facilitate routine maintenance operations)

Fuel Tank:
• Enlarged capacity tank with standard autonomy well above
average
• Fuel level indicator (analog)
• Bayonet fuel filler cap
• Cup-type fuel supply pre-filter
• Fuel tap (located on the front control panel)
• Inline fuel filter

Alternator:
• Appropriately sized antivibration mounts.
• Starting battery integrated into the structure
• Residential exhaust muffler with guards and spark arrestor
• Low oil level protection (oil guard)

Handling:
• Transport kit, supplied installed and integrated into the structure, consisting of two solid rubber wheels and a retractable handle complete with non-slip rubber.
• 2 lifting points provided on the upper part of the frame
